Ring

Ring

https://erp.arlistore.com/web/image/product.template/316/image_1920?unique=da0d1b4

Technical specifications

Light Source

LED

CCT

3000K, 4000K

CRI

80

Switching type

Non-dimmable, DALI

Wattage

38-75 W

Lumen output

3344-7125 lm

LED
220 - 240V AC, 50/60Hz
20
I
ce

Downloads

Datasheet Download CE Download Manual Download

Specification

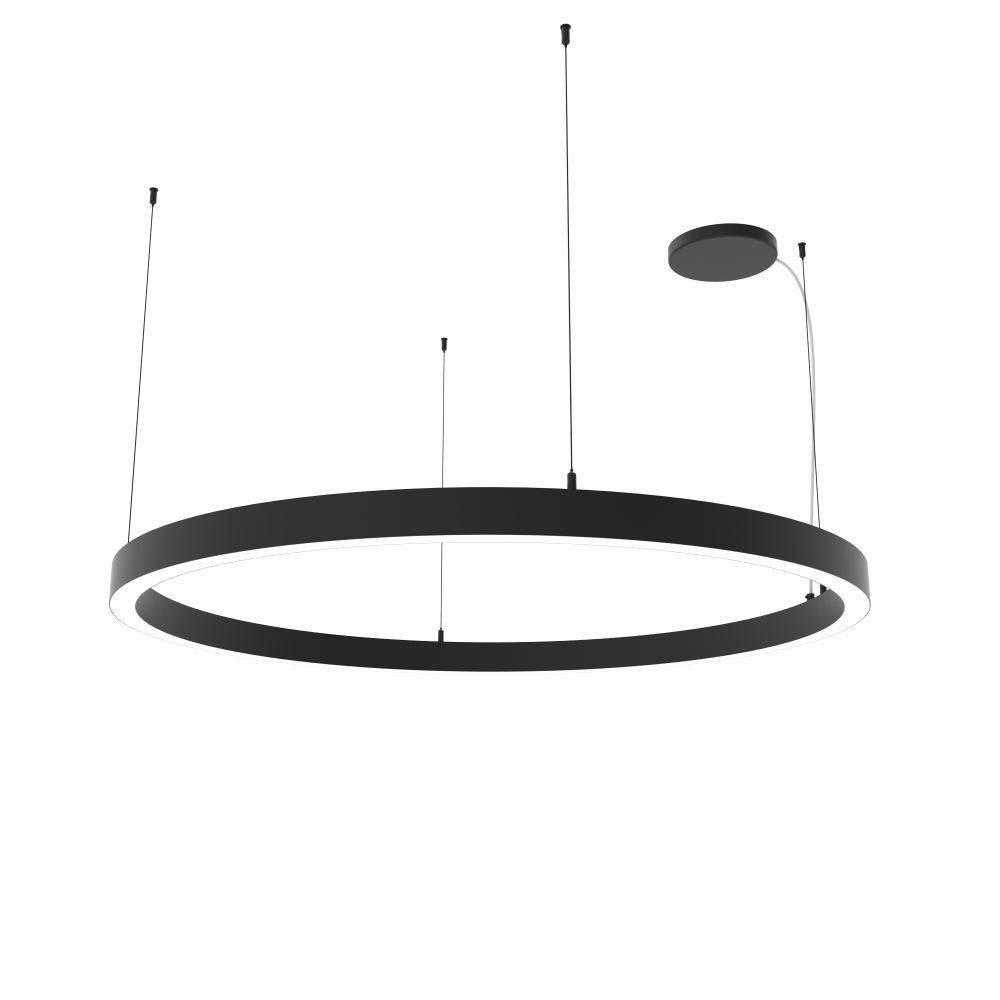

Ring is a circular LED luminaire with high-quality LED source with 50,000 hours lifetime and PMMA diffuser for uniform light. Available in 3 sizes, color temperatures 3000K/4000K with CRI 80+. Suspended and surface mounting options with DALI control available. Wide range of cable colors. Ideal for offices and commercial spaces. 5-year warranty.

Applications and features

Housing colors

Black
RAL 9005
White
RAL 9003

Cable colors

White
0111
Black
0900
Gray
8765
Brown
7953
Red
3119
Blue
4867
Light blue
4906
Cyan
5305
Orange
2166
Purple
4406
Pink
3358
Green
5474
Dark green
5744
Yellow
1257
Red/white
3119z
Black/white
0900z
Cyan/white
5305z

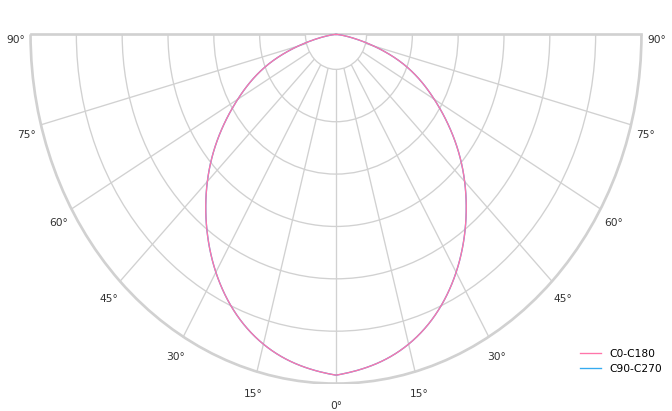

Light distributions

product.polar.curve.image,123

Default

Options

Product code
Power consumption[W]
0 0
Lumen output[lm]
0 0
CCT
CRI
Dimming
Housing color
Ring-L-830-1-SUR-BL-
75.0
6600
3000k
80
Non-dimmable
Black
Power consumption[W]
75.0
Lumen output[lm]
6600
CCT
3000k
CRI
80
Dimming
Non-dimmable
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-L-830-1-SUR-WH-
75.0
6600
3000k
80
Non-dimmable
White
Power consumption[W]
75.0
Lumen output[lm]
6600
CCT
3000k
CRI
80
Dimming
Non-dimmable
Housing color
White
Datasheet Download LDT file Download View Details
Ring-L-830-1-SUS-BL-
75.0
6600
3000k
80
Non-dimmable
Black
Power consumption[W]
75.0
Lumen output[lm]
6600
CCT
3000k
CRI
80
Dimming
Non-dimmable
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-L-830-1-SUS-WH-
75.0
6600
3000k
80
Non-dimmable
White
Power consumption[W]
75.0
Lumen output[lm]
6600
CCT
3000k
CRI
80
Dimming
Non-dimmable
Housing color
White
Datasheet Download LDT file Download View Details
Ring-L-830-2-SUR-BL-
75.0
6600
3000k
80
DALI
Black
Power consumption[W]
75.0
Lumen output[lm]
6600
CCT
3000k
CRI
80
Dimming
DALI
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-L-830-2-SUR-WH-
75.0
6600
3000k
80
DALI
White
Power consumption[W]
75.0
Lumen output[lm]
6600
CCT
3000k
CRI
80
Dimming
DALI
Housing color
White
Datasheet Download LDT file Download View Details
Ring-L-830-2-SUS-BL-
75.0
6600
3000k
80
DALI
Black
Power consumption[W]
75.0
Lumen output[lm]
6600
CCT
3000k
CRI
80
Dimming
DALI
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-L-830-2-SUS-WH-
75.0
6600
3000k
80
DALI
White
Power consumption[W]
75.0
Lumen output[lm]
6600
CCT
3000k
CRI
80
Dimming
DALI
Housing color
White
Datasheet Download LDT file Download View Details
Ring-L-840-1-SUR-BL-
75.0
7125
4000k
80
Non-dimmable
Black
Power consumption[W]
75.0
Lumen output[lm]
7125
CCT
4000k
CRI
80
Dimming
Non-dimmable
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-L-840-1-SUR-WH-
75.0
7125
4000k
80
Non-dimmable
White
Power consumption[W]
75.0
Lumen output[lm]
7125
CCT
4000k
CRI
80
Dimming
Non-dimmable
Housing color
White
Datasheet Download LDT file Download View Details
Ring-L-840-1-SUS-BL-
75.0
7125
4000k
80
Non-dimmable
Black
Power consumption[W]
75.0
Lumen output[lm]
7125
CCT
4000k
CRI
80
Dimming
Non-dimmable
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-L-840-1-SUS-WH-
75.0
7125
4000k
80
Non-dimmable
White
Power consumption[W]
75.0
Lumen output[lm]
7125
CCT
4000k
CRI
80
Dimming
Non-dimmable
Housing color
White
Datasheet Download LDT file Download View Details
Ring-L-840-2-SUR-BL-
75.0
7125
4000k
80
DALI
Black
Power consumption[W]
75.0
Lumen output[lm]
7125
CCT
4000k
CRI
80
Dimming
DALI
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-L-840-2-SUR-WH-
75.0
7125
4000k
80
DALI
White
Power consumption[W]
75.0
Lumen output[lm]
7125
CCT
4000k
CRI
80
Dimming
DALI
Housing color
White
Datasheet Download LDT file Download View Details
Ring-L-840-2-SUS-BL-
75.0
7125
4000k
80
DALI
Black
Power consumption[W]
75.0
Lumen output[lm]
7125
CCT
4000k
CRI
80
Dimming
DALI
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-L-840-2-SUS-WH-
75.0
7125
4000k
80
DALI
White
Power consumption[W]
75.0
Lumen output[lm]
7125
CCT
4000k
CRI
80
Dimming
DALI
Housing color
White
Datasheet Download LDT file Download View Details
Ring-M-830-1-SUR-BL-
57.0
5016
3000k
80
Non-dimmable
Black
Power consumption[W]
57.0
Lumen output[lm]
5016
CCT
3000k
CRI
80
Dimming
Non-dimmable
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-M-830-1-SUR-WH-
57.0
5016
3000k
80
Non-dimmable
White
Power consumption[W]
57.0
Lumen output[lm]
5016
CCT
3000k
CRI
80
Dimming
Non-dimmable
Housing color
White
Datasheet Download LDT file Download View Details
Ring-M-830-1-SUS-BL-
57.0
5016
3000k
80
Non-dimmable
Black
Power consumption[W]
57.0
Lumen output[lm]
5016
CCT
3000k
CRI
80
Dimming
Non-dimmable
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-M-830-1-SUS-WH-
57.0
5016
3000k
80
Non-dimmable
White
Power consumption[W]
57.0
Lumen output[lm]
5016
CCT
3000k
CRI
80
Dimming
Non-dimmable
Housing color
White
Datasheet Download LDT file Download View Details
Ring-M-830-2-SUR-BL-
57.0
5016
3000k
80
DALI
Black
Power consumption[W]
57.0
Lumen output[lm]
5016
CCT
3000k
CRI
80
Dimming
DALI
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-M-830-2-SUR-WH-
57.0
5016
3000k
80
DALI
White
Power consumption[W]
57.0
Lumen output[lm]
5016
CCT
3000k
CRI
80
Dimming
DALI
Housing color
White
Datasheet Download LDT file Download View Details
Ring-M-830-2-SUS-BL-
57.0
5016
3000k
80
DALI
Black
Power consumption[W]
57.0
Lumen output[lm]
5016
CCT
3000k
CRI
80
Dimming
DALI
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-M-830-2-SUS-WH-
57.0
5016
3000k
80
DALI
White
Power consumption[W]
57.0
Lumen output[lm]
5016
CCT
3000k
CRI
80
Dimming
DALI
Housing color
White
Datasheet Download LDT file Download View Details
Ring-M-840-1-SUR-BL-
57.0
5415
4000k
80
Non-dimmable
Black
Power consumption[W]
57.0
Lumen output[lm]
5415
CCT
4000k
CRI
80
Dimming
Non-dimmable
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-M-840-1-SUR-WH-
57.0
5415
4000k
80
Non-dimmable
White
Power consumption[W]
57.0
Lumen output[lm]
5415
CCT
4000k
CRI
80
Dimming
Non-dimmable
Housing color
White
Datasheet Download LDT file Download View Details
Ring-M-840-1-SUS-BL-
57.0
5415
4000k
80
Non-dimmable
Black
Power consumption[W]
57.0
Lumen output[lm]
5415
CCT
4000k
CRI
80
Dimming
Non-dimmable
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-M-840-1-SUS-WH-
57.0
5415
4000k
80
Non-dimmable
White
Power consumption[W]
57.0
Lumen output[lm]
5415
CCT
4000k
CRI
80
Dimming
Non-dimmable
Housing color
White
Datasheet Download LDT file Download View Details
Ring-M-840-2-SUR-BL-
57.0
5415
4000k
80
DALI
Black
Power consumption[W]
57.0
Lumen output[lm]
5415
CCT
4000k
CRI
80
Dimming
DALI
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-M-840-2-SUR-WH-
57.0
5415
4000k
80
DALI
White
Power consumption[W]
57.0
Lumen output[lm]
5415
CCT
4000k
CRI
80
Dimming
DALI
Housing color
White
Datasheet Download LDT file Download View Details
Ring-M-840-2-SUS-BL-
57.0
5415
4000k
80
DALI
Black
Power consumption[W]
57.0
Lumen output[lm]
5415
CCT
4000k
CRI
80
Dimming
DALI
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-M-840-2-SUS-WH-
57.0
5415
4000k
80
DALI
White
Power consumption[W]
57.0
Lumen output[lm]
5415
CCT
4000k
CRI
80
Dimming
DALI
Housing color
White
Datasheet Download LDT file Download View Details
Ring-S-830-1-SUR-BL-
38.0
3344
3000k
80
Non-dimmable
Black
Power consumption[W]
38.0
Lumen output[lm]
3344
CCT
3000k
CRI
80
Dimming
Non-dimmable
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-S-830-1-SUR-WH-
38.0
3344
3000k
80
Non-dimmable
White
Power consumption[W]
38.0
Lumen output[lm]
3344
CCT
3000k
CRI
80
Dimming
Non-dimmable
Housing color
White
Datasheet Download LDT file Download View Details
Ring-S-830-1-SUS-BL-
38.0
3344
3000k
80
Non-dimmable
Black
Power consumption[W]
38.0
Lumen output[lm]
3344
CCT
3000k
CRI
80
Dimming
Non-dimmable
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-S-830-1-SUS-WH-
38.0
3344
3000k
80
Non-dimmable
White
Power consumption[W]
38.0
Lumen output[lm]
3344
CCT
3000k
CRI
80
Dimming
Non-dimmable
Housing color
White
Datasheet Download LDT file Download View Details
Ring-S-830-2-SUR-BL-
38.0
3344
3000k
80
DALI
Black
Power consumption[W]
38.0
Lumen output[lm]
3344
CCT
3000k
CRI
80
Dimming
DALI
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-S-830-2-SUR-WH-
38.0
3344
3000k
80
DALI
White
Power consumption[W]
38.0
Lumen output[lm]
3344
CCT
3000k
CRI
80
Dimming
DALI
Housing color
White
Datasheet Download LDT file Download View Details
Ring-S-830-2-SUS-BL-
38.0
3344
3000k
80
DALI
Black
Power consumption[W]
38.0
Lumen output[lm]
3344
CCT
3000k
CRI
80
Dimming
DALI
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-S-830-2-SUS-WH-
38.0
3344
3000k
80
DALI
White
Power consumption[W]
38.0
Lumen output[lm]
3344
CCT
3000k
CRI
80
Dimming
DALI
Housing color
White
Datasheet Download LDT file Download View Details
Ring-S-840-1-SUR-BL-
38.0
3610
4000k
80
Non-dimmable
Black
Power consumption[W]
38.0
Lumen output[lm]
3610
CCT
4000k
CRI
80
Dimming
Non-dimmable
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-S-840-1-SUR-WH-
38.0
3610
4000k
80
Non-dimmable
White
Power consumption[W]
38.0
Lumen output[lm]
3610
CCT
4000k
CRI
80
Dimming
Non-dimmable
Housing color
White
Datasheet Download LDT file Download View Details
Ring-S-840-1-SUS-BL-
38.0
3610
4000k
80
Non-dimmable
Black
Power consumption[W]
38.0
Lumen output[lm]
3610
CCT
4000k
CRI
80
Dimming
Non-dimmable
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-S-840-1-SUS-WH-
38.0
3610
4000k
80
Non-dimmable
White
Power consumption[W]
38.0
Lumen output[lm]
3610
CCT
4000k
CRI
80
Dimming
Non-dimmable
Housing color
White
Datasheet Download LDT file Download View Details
Ring-S-840-2-SUR-BL-
38.0
3610
4000k
80
DALI
Black
Power consumption[W]
38.0
Lumen output[lm]
3610
CCT
4000k
CRI
80
Dimming
DALI
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-S-840-2-SUR-WH-
38.0
3610
4000k
80
DALI
White
Power consumption[W]
38.0
Lumen output[lm]
3610
CCT
4000k
CRI
80
Dimming
DALI
Housing color
White
Datasheet Download LDT file Download View Details
Ring-S-840-2-SUS-BL-
38.0
3610
4000k
80
DALI
Black
Power consumption[W]
38.0
Lumen output[lm]
3610
CCT
4000k
CRI
80
Dimming
DALI
Housing color
Black
Datasheet Download LDT file Download View Details
Ring-S-840-2-SUS-WH-
38.0
3610
4000k
80
DALI
White
Power consumption[W]
38.0
Lumen output[lm]
3610
CCT
4000k
CRI
80
Dimming
DALI
Housing color
White
Datasheet Download LDT file Download View Details

Ring

https://erp.arlistore.com/web/image/product.template/316/image_1920?unique=da0d1b4

596.40 € 596.4 EUR 596.40 €

596.40 €

Not Available For Sale

  • Version
  • CCT
  • Dimming
  • Montáž
  • Housing Color
  • Cable Color

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
