DIABLO-L-827-1-60-WH
Technical specifications
Light Source
LED
CCT
2700k
CRI
80
Switching type
Non-dimmable
Connected load
27.27 W
Lumen output
3,579.84 lm
Efficiency
131.3 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
3-phase track adapter
Switching type
Non-dimmable
Socket
20
Protection class
II
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
2700k
CRI
80
Connected load
27.27 W
Lumen output
3,579.84 lm
Efficiency
131.3 lm/W
Ripple
5 %
Inrush current
7 A
Inrush time
28 μs
Optical system
Lenses
Optical part material
PMMA
Housing material
Die-cast aluminium
Surface finish
Powder coated
Height
132.00 mm
Diameter
90.00 mm
Weight
0.80 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Housing color

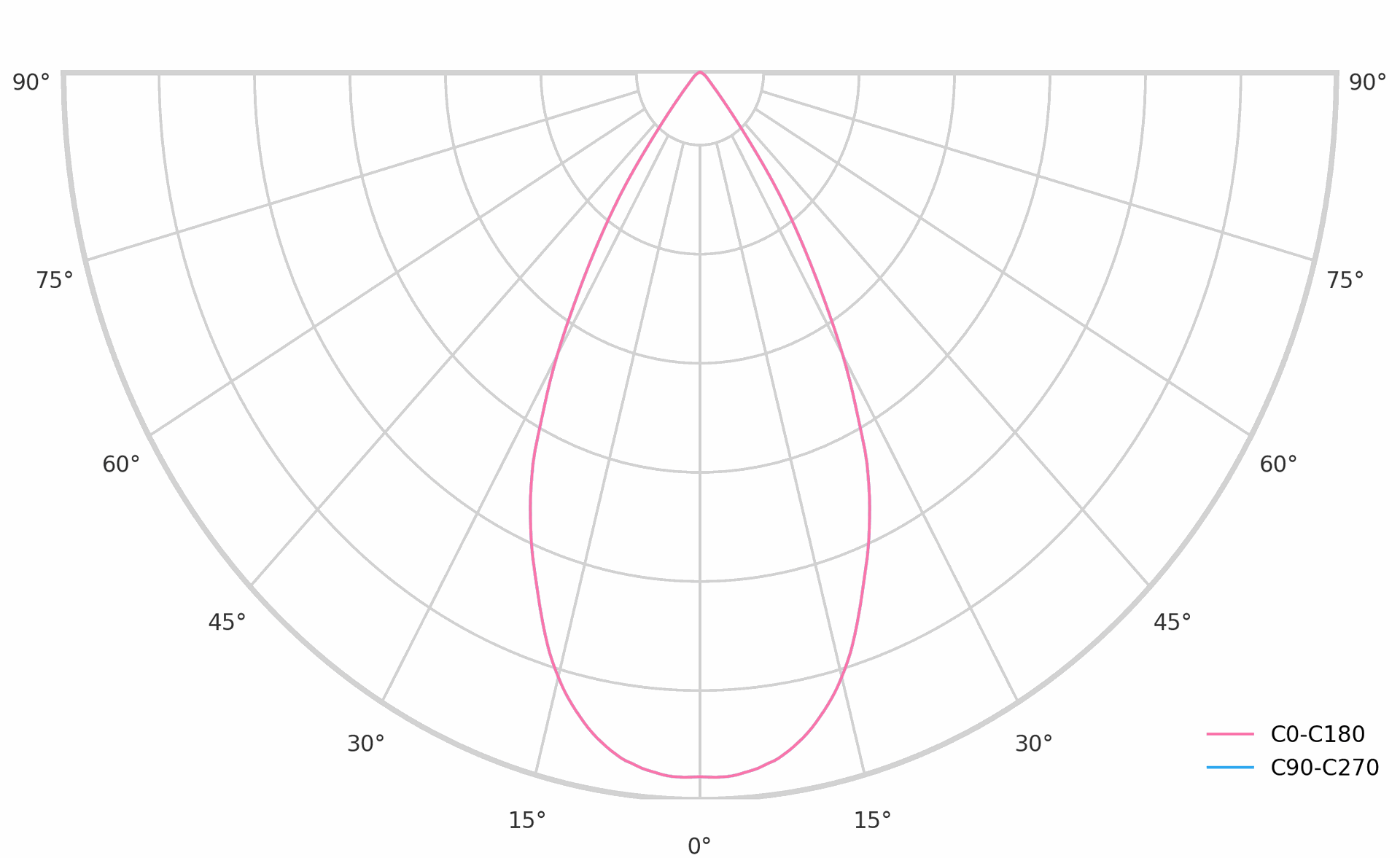

Dimmensions and light distribution
