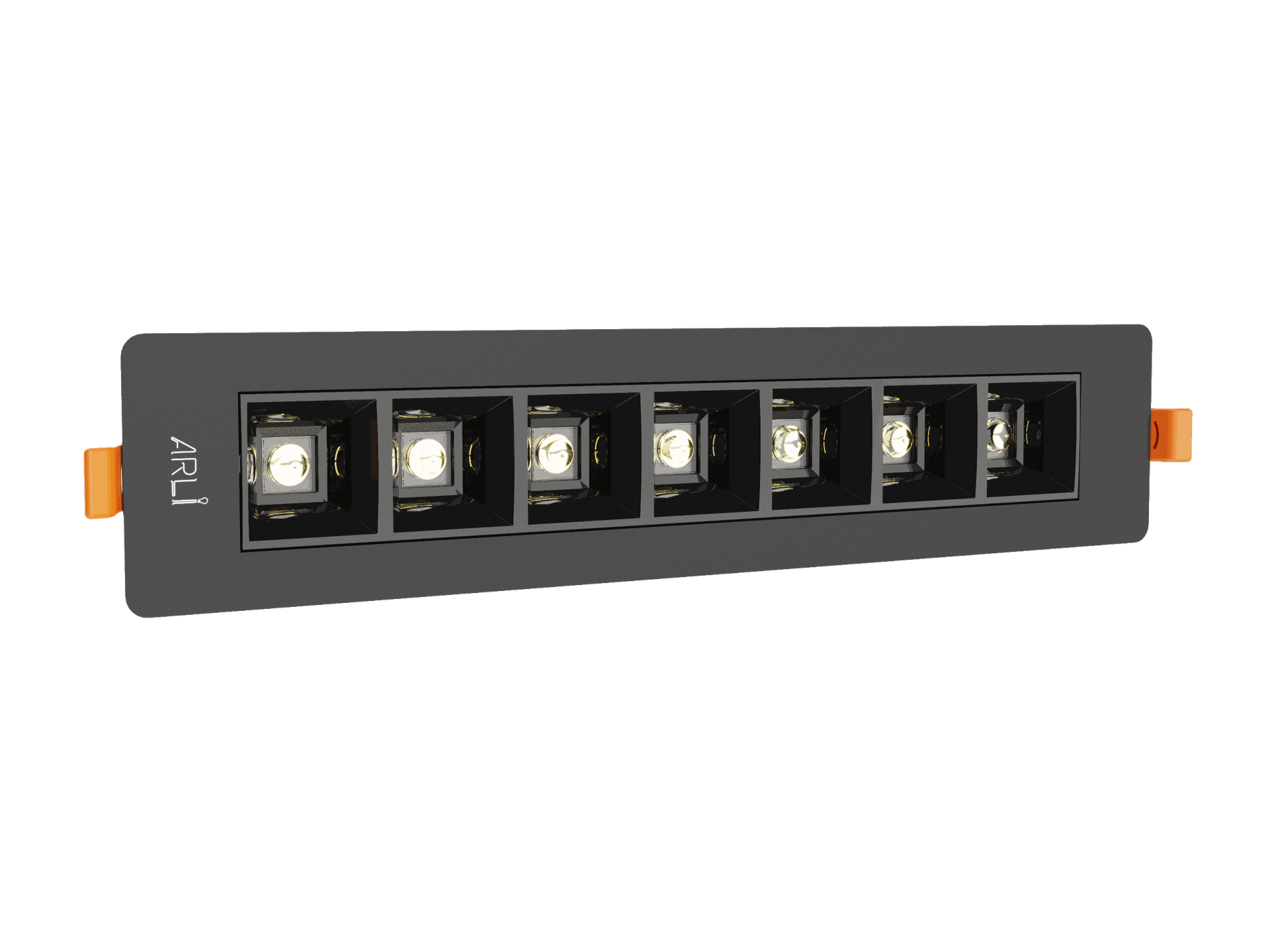

WORREC-L-927-2-WAS-BL
Technical specifications
Light Source
LED
CCT
2700k
CRI
90
Switching type
DALI
Connected load
13.24 W
Lumen output
1,043.64 lm
Efficiency
78.8 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Screw terminal
Switching type
DALI
Socket
20
Protection class
II
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
2700k
CRI
90
Connected load
13.24 W
Lumen output
1,043.64 lm
Efficiency
78.8 lm/W
Ripple
3 %
DALI address
1
Inrush current
4 A
Inrush time
46 μs
Optical system
Lenses
Optical part material
PMMA
Housing material
Steel
Surface finish
Powder coated
Width
71.00 mm
Height
41.00 mm
Length
340.00 mm
Weight
0.75 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Housing color
Dimmensions and light distribution
