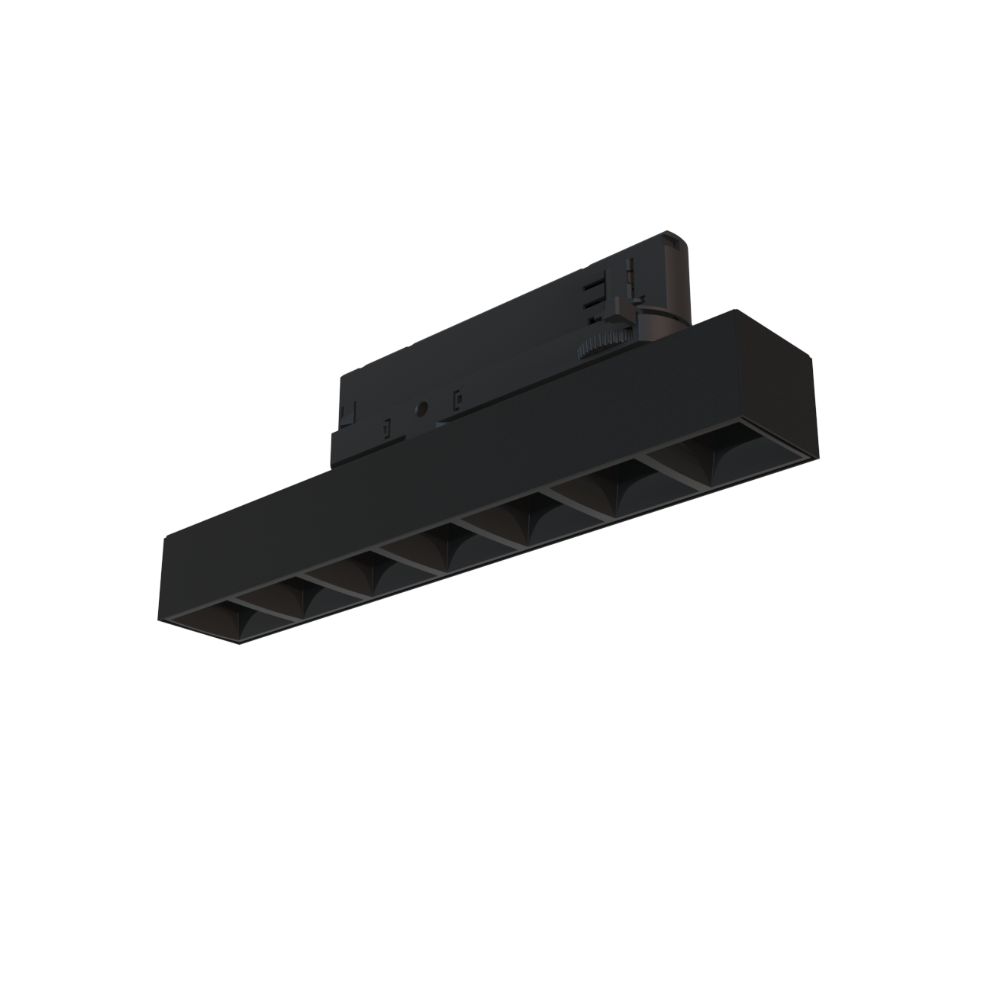

WORCOM-S-830-2-ASYM-BL
Technical specifications
Light Source
LED
CCT
3000k
CRI
80
Switching type
DALI
Connected load
8.84 W
Lumen output
840.24 lm
Efficiency
95.0 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
3-phase track adapter
Switching type
DALI
Socket
20
Protection class
II
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
3000k
CRI
80
Connected load
8.84 W
Lumen output
840.24 lm
Efficiency
95.0 lm/W
Ripple
1 %
Standby power
0.30 W
Optical system
Lenses
Optical part material
PMMA
Surface finish
Powder coated
Width
43.00 mm
Height
37.00 mm
Length
283.00 mm
Weight
0.45 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Housing color
Dimmensions and light distribution
