WORSUS-XL-930-1-SYM-BL-
Technical specifications
Light Source
LED
CCT
3000k
CRI
90
Switching type
Non-dimmable
Connected load
44.64 W
Lumen output
3,946.32 lm
Efficiency
88.4 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
Non-dimmable
Socket
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
3000k
CRI
90
Connected load
44.64 W
Lumen output
3,946.32 lm
Efficiency
88.4 lm/W
Ripple
1 %
Inrush current
37 A
Inrush time
188 μs
Optical system
Lenses
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Powder coated
Width
44.00 mm
Height
47.00 mm
Length
1,122.00 mm
Weight
2.80 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Housing color
Cable colors

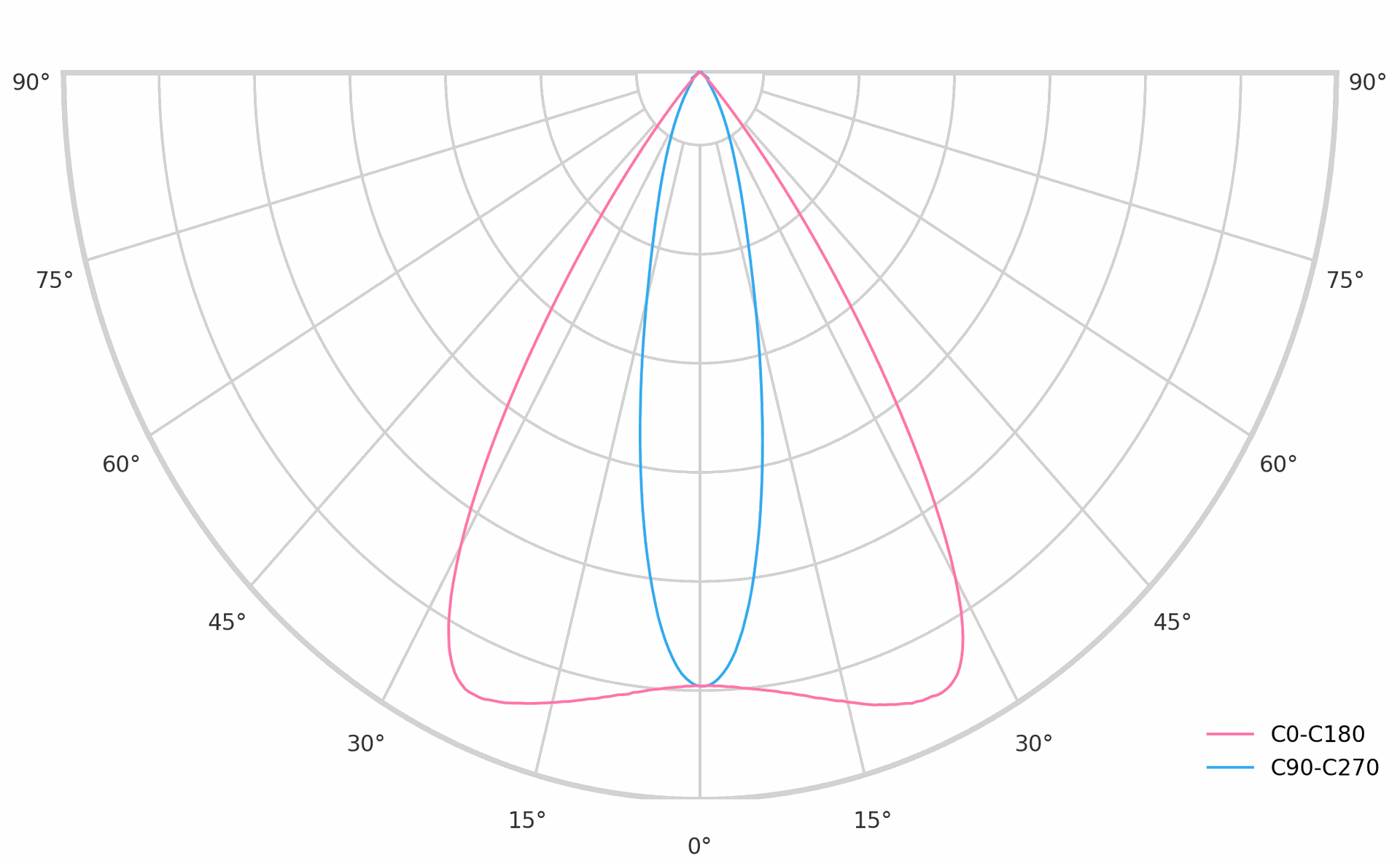

Dimmensions and light distribution
