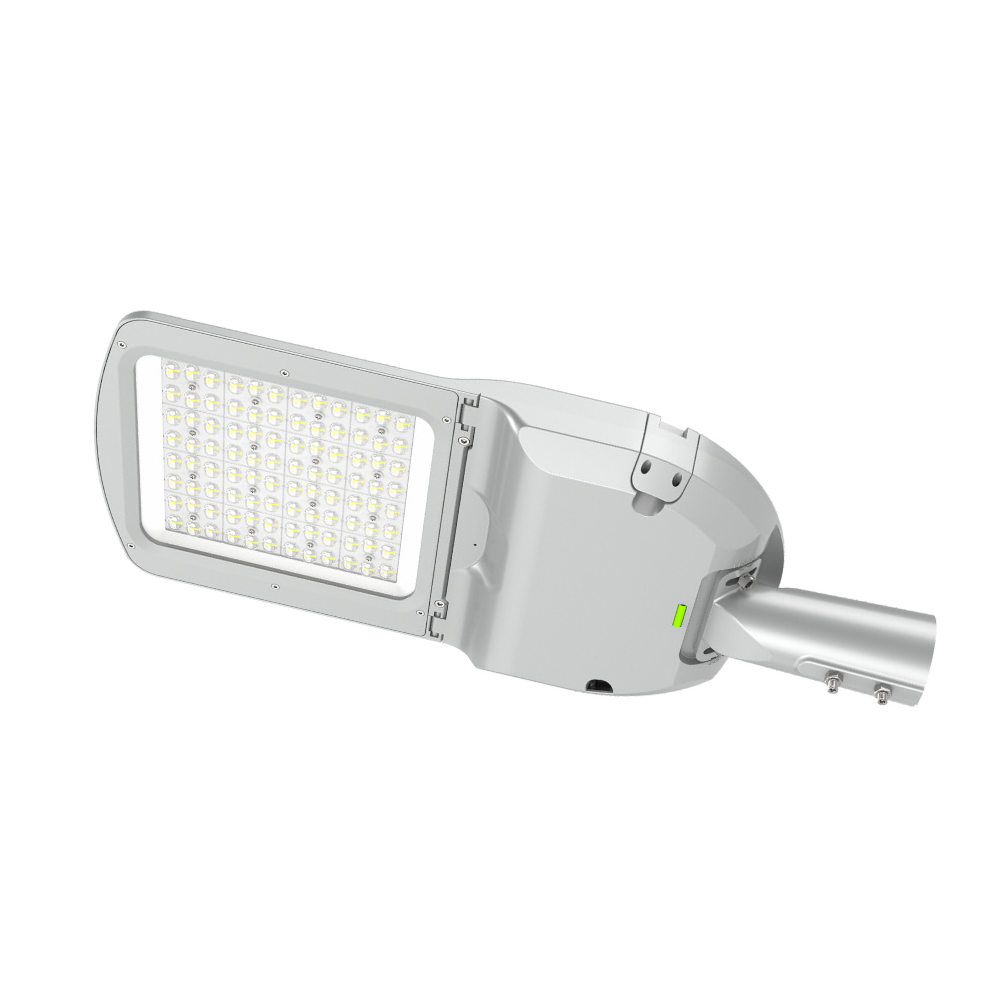

POS-L-727-2-C17027
Technical specifications
Light Source
LED
CCT
2700k
CRI
70
Switching type
DALI
Connected load
102.25 W
Lumen output
11,994.94 lm
Efficiency
117.3 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Screw terminal
Switching type
DALI
Socket
66
Protection class
I
Ambient temperature
-40 to +50 °C
Light Source
LED
CCT
2700k
CRI
70
Connected load
102.25 W
Lumen output
11,994.94 lm
Efficiency
117.3 lm/W
Ripple
3 %
DALI address
1
Standby power
0.50 W
Inrush current
81 A
Inrush time
360 μs
Optical system
Lenses
Optical part material
Hardened glass
Housing material
Die-cast aluminium
Surface finish
Powder coated
Width
240.00 mm
Height
109.00 mm
Length
613.00 mm
Weight
5.10 kg
Service lifetime (L80 B10)
>100 000 h
Warranty
7 years

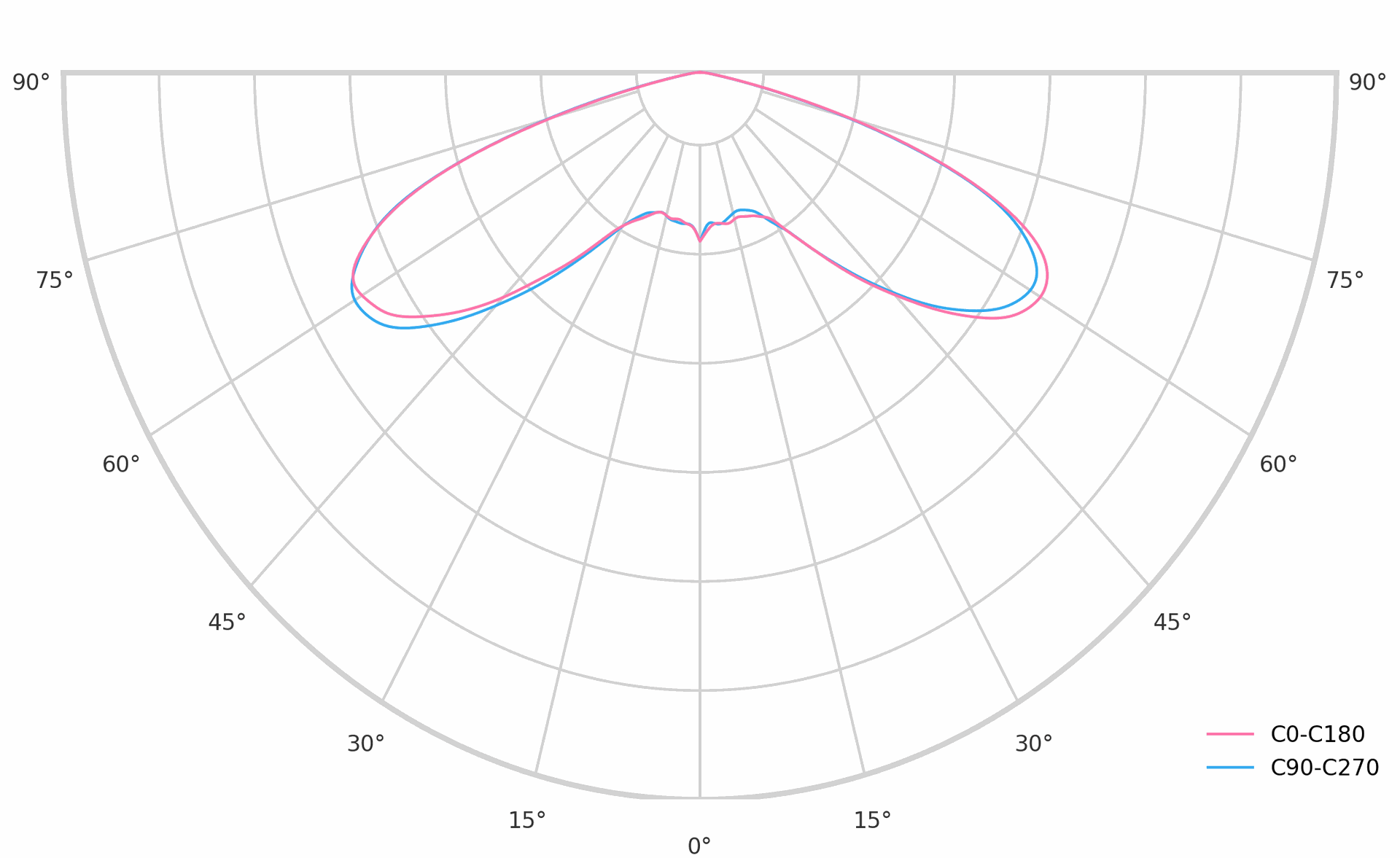

Dimmensions and light distribution
