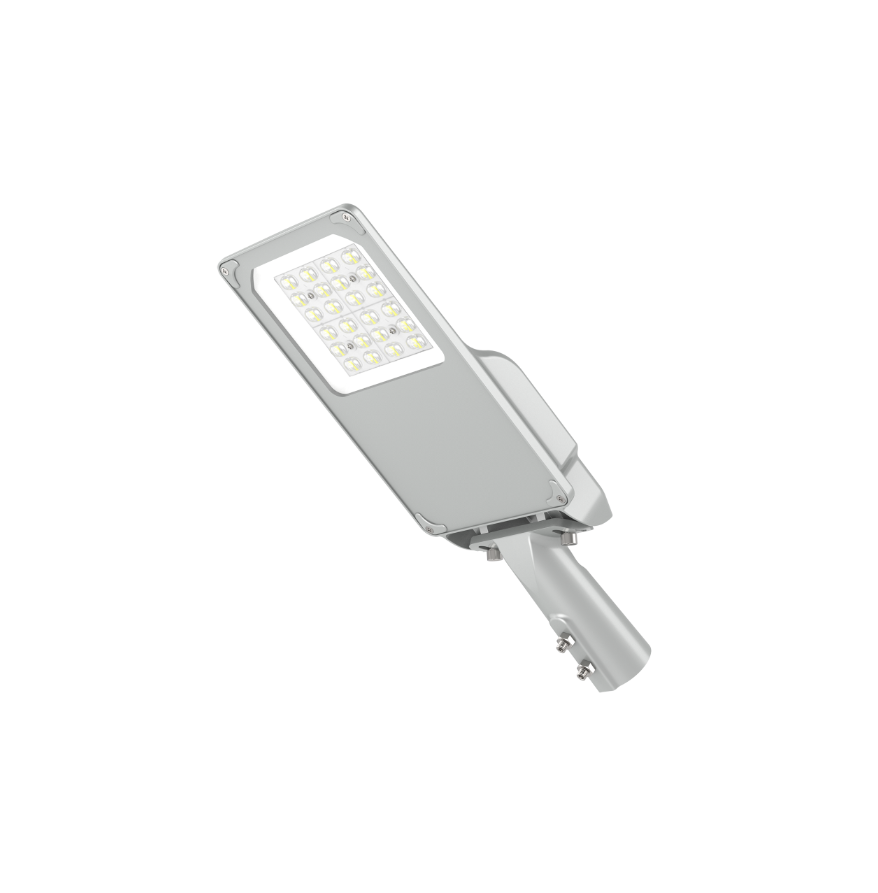

LUKA-S-727-2-C13300
Technical specifications
Light Source
LED
CCT
2700k
CRI
70
Switching type
DALI
Connected load
26.03 W
Lumen output
3,174.60 lm
Efficiency
122.0 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Connection cable
Switching type
DALI
Socket
66
Protection class
I
Ambient temperature
-40 to +40 °C
Light Source
LED
CCT
2700k
CRI
70
Connected load
26.03 W
Lumen output
3,174.60 lm
Efficiency
122.0 lm/W
Ripple
2 %
DALI address
1
Standby power
0.50 W
Inrush current
46 A
Inrush time
728 μs
Optical system
Lenses
Optical part material
Hardened glass
Housing material
Die-cast aluminium
Surface finish
Powder coated
Width
173.00 mm
Height
69.00 mm
Length
342.00 mm
Weight
5.00 kg
Service lifetime (L80 B10)
>100 000 h
Warranty
5 years

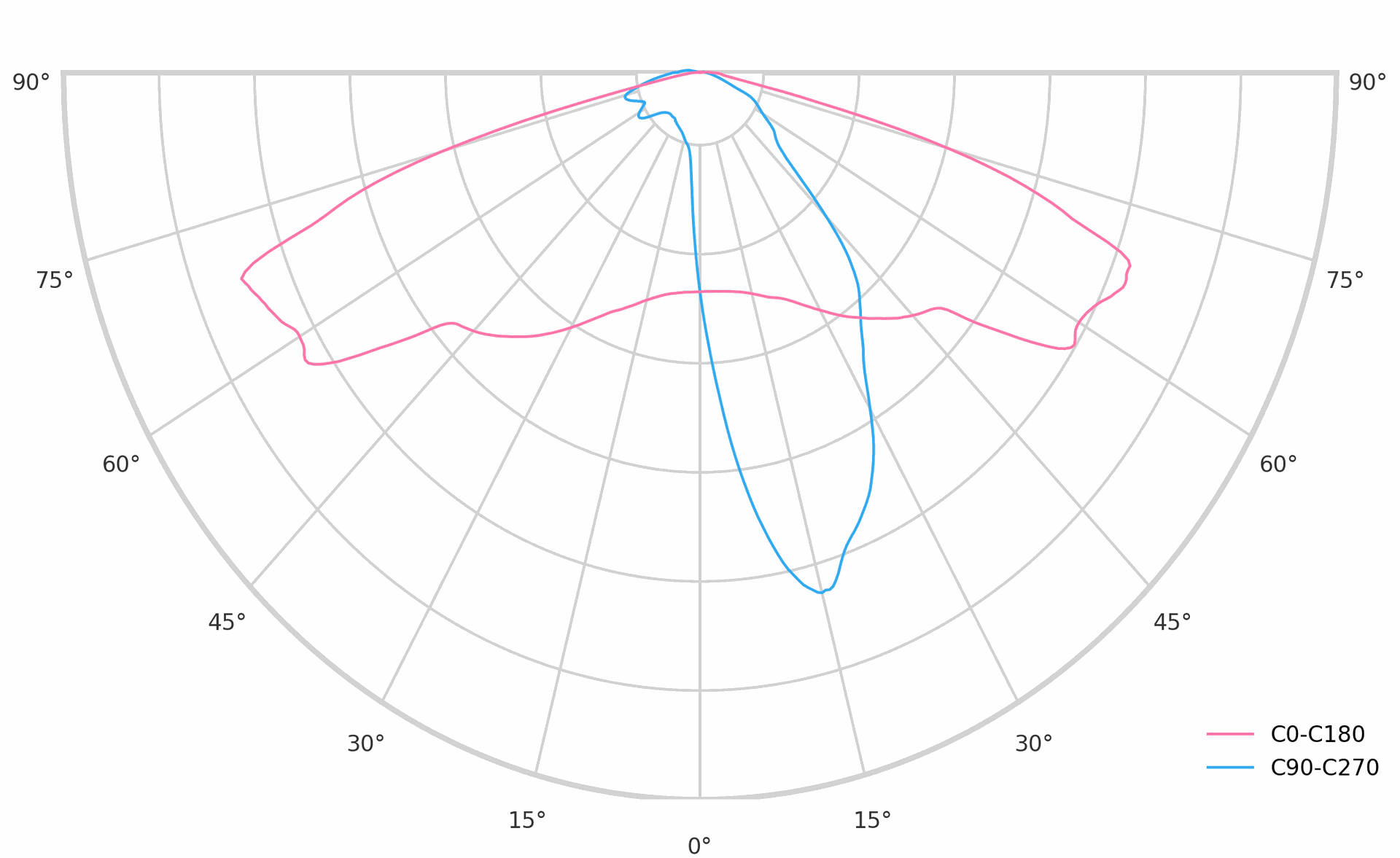

Dimmensions and light distribution
