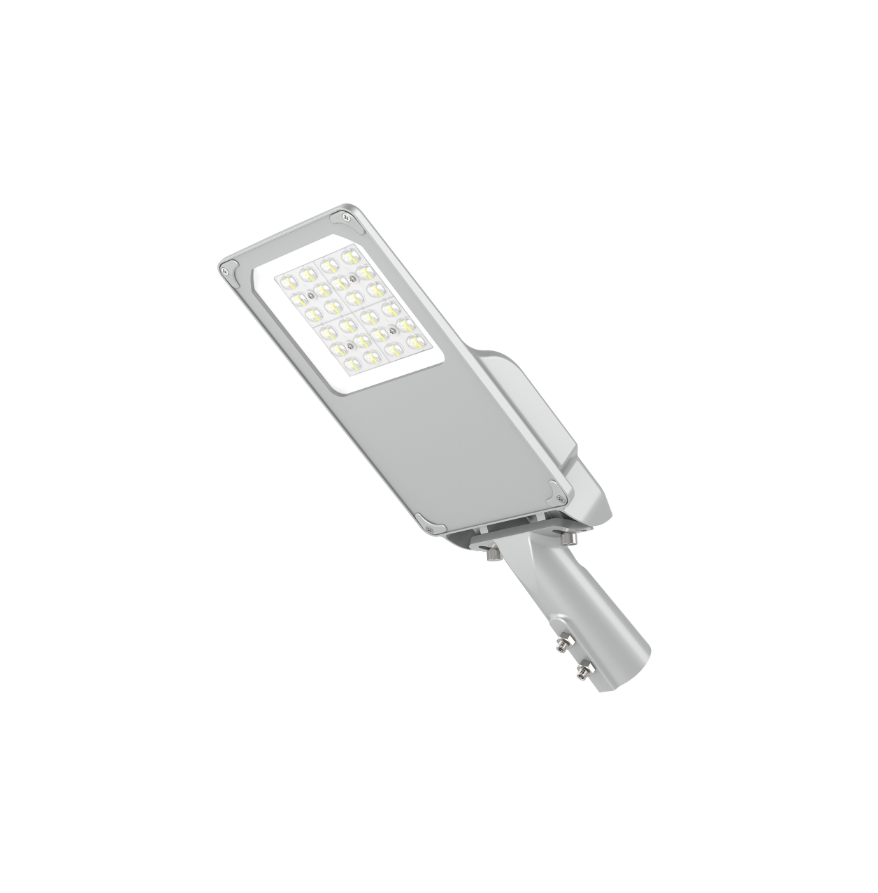

LUKA-L-722-1-C15021
Technical specifications
Light Source
LED
CCT
2200k
CRI
70
Switching type
Non-dimmable
Connected load
50.70 W
Lumen output
4,615.69 lm
Efficiency
91.0 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Connection cable
Switching type
Non-dimmable
Socket
66
Protection class
I
Ambient temperature
-40 to +40 °C
Light Source
LED
CCT
2200k
CRI
70
Connected load
50.70 W
Lumen output
4,615.69 lm
Efficiency
91.0 lm/W
Ripple
3 %
Inrush current
46 A
Inrush time
728 μs
Optical system
Lenses
Optical part material
Hardened glass
Housing material
Die-cast aluminium
Surface finish
Powder coated
Width
173.00 mm
Height
69.00 mm
Length
342.00 mm
Weight
5.00 kg
Service lifetime (L80 B10)
>100 000 h
Warranty
5 years

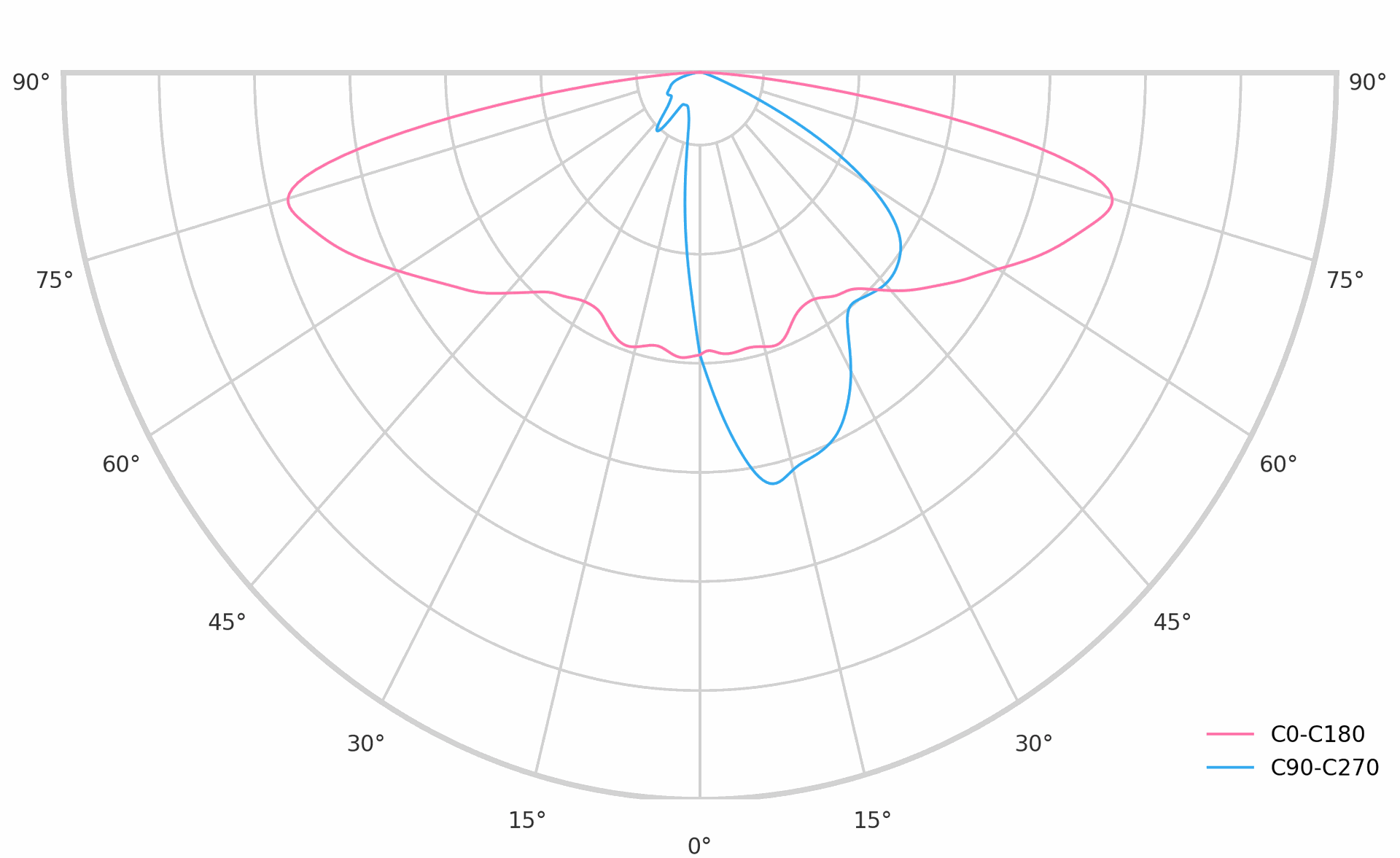

Dimmensions and light distribution
