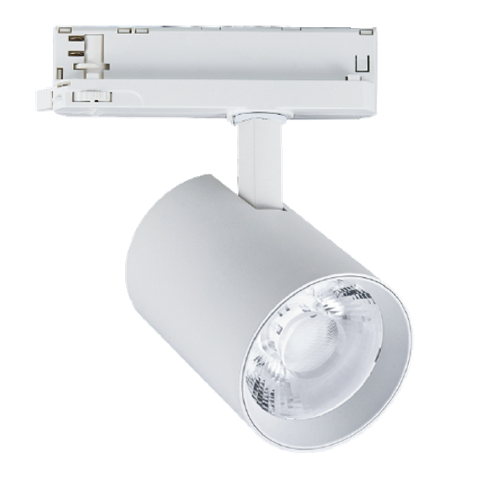

DIABLOFD-M-MV-2-15-WH
Technical specifications
Light Source
LED
Switching type
DALI
Connected load
19.33 W
Lumen output
1,704.56 lm
Efficiency
88.2 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
3-phase track adapter
Switching type
DALI
Socket
20
Protection class
II
Ambient temperature
0 to +25 °C
Light Source
LED
Connected load
19.33 W
Lumen output
1,704.56 lm
Efficiency
88.2 lm/W
Ripple
3 %
DALI address
1
Standby power
0.50 W
Inrush current
5 A
Inrush time
50 μs
Optical system
Lenses
Optical part material
PMMA
Housing material
Die-cast aluminium
Surface finish
Powder coated
Height
132.00 mm
Diameter
90.00 mm
Weight
0.80 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Housing color

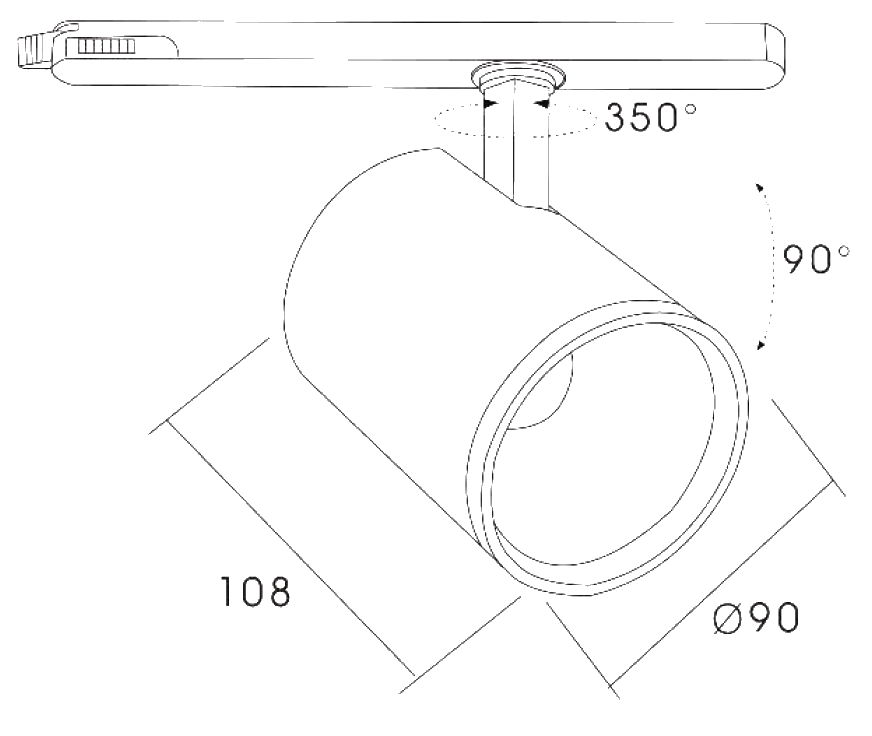

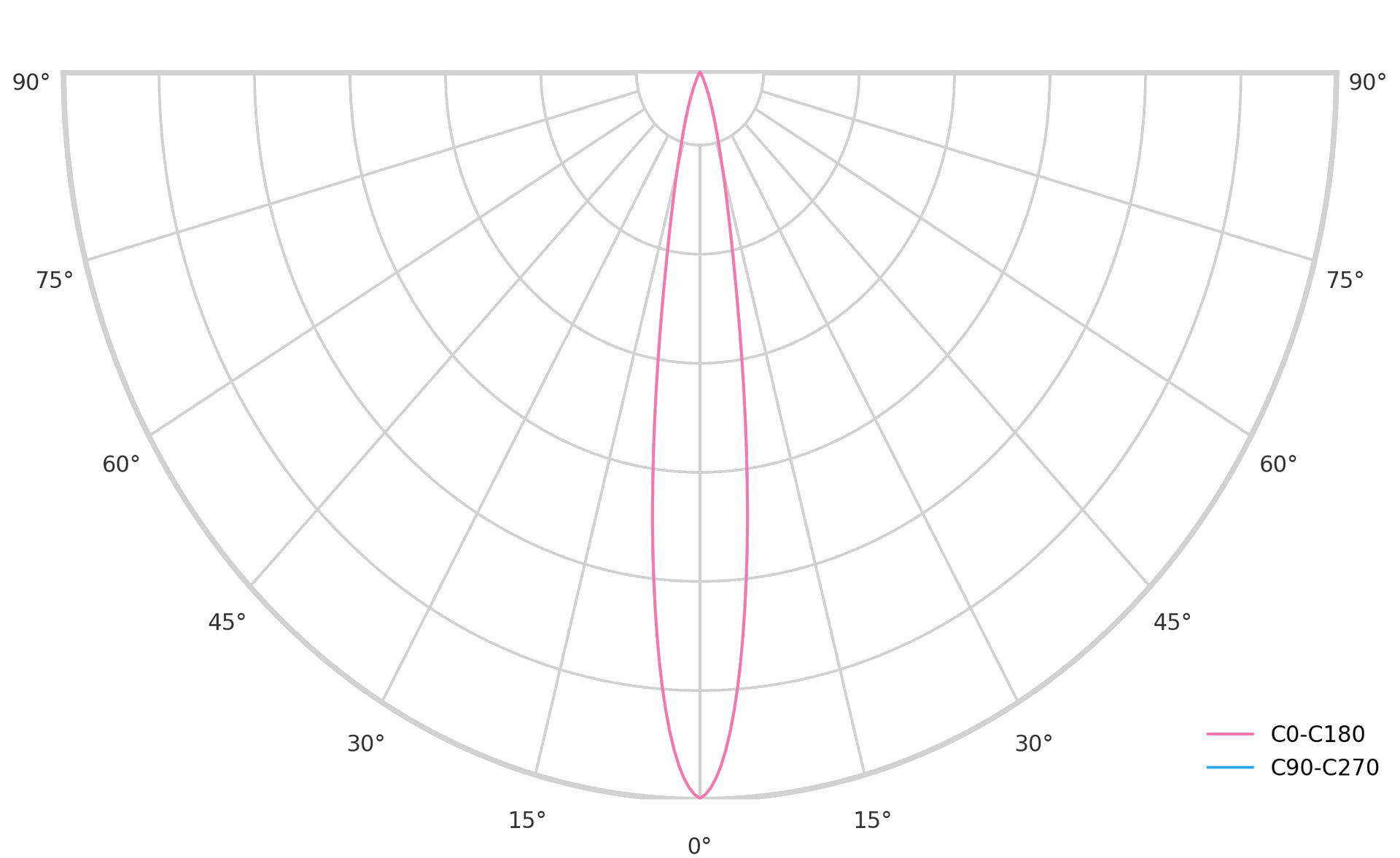

Dimmensions and light distribution
