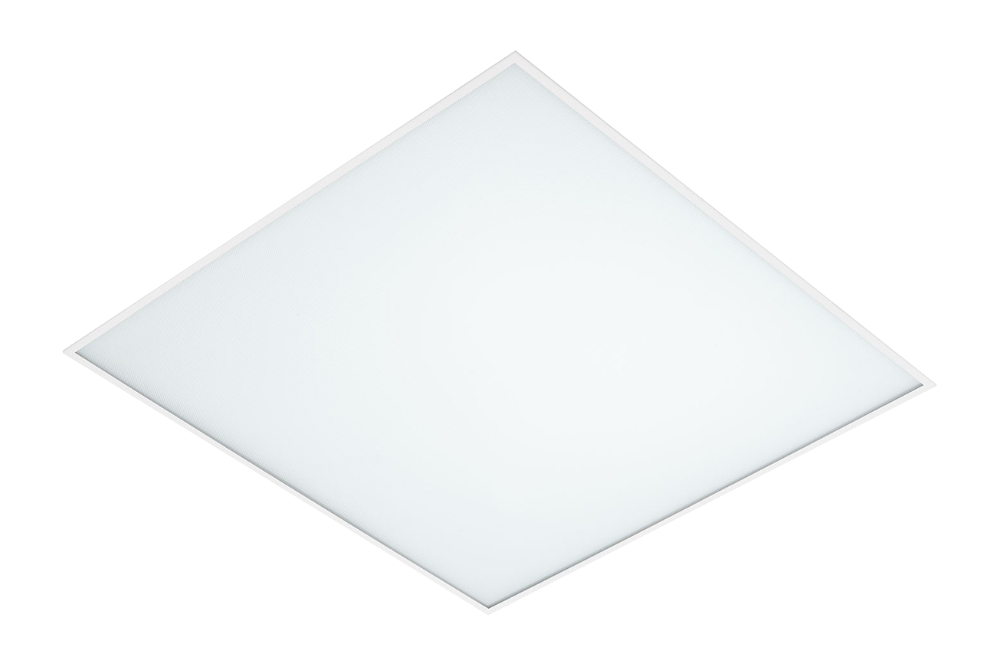

SQEA-M-840-2
Technical specifications
Light Source
LED
CCT
4000k
CRI
80
Switching type
DALI
Connected load
26.00 W
Lumen output
4,160.00 lm
Efficiency
160.0 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
DALI
Socket
20
Protection class
II
Ambient temperature
0 to +30 °C
Light Source
LED
CCT
4000k
CRI
80
Connected load
26.00 W
Lumen output
4,160.00 lm
Efficiency
160.0 lm/W
Optical system
Diffuser
Optical part material
PMMA
Housing material
Steel
Surface finish
Powder coated
Service lifetime (L80 B10)
50 000 h
Warranty
5 years

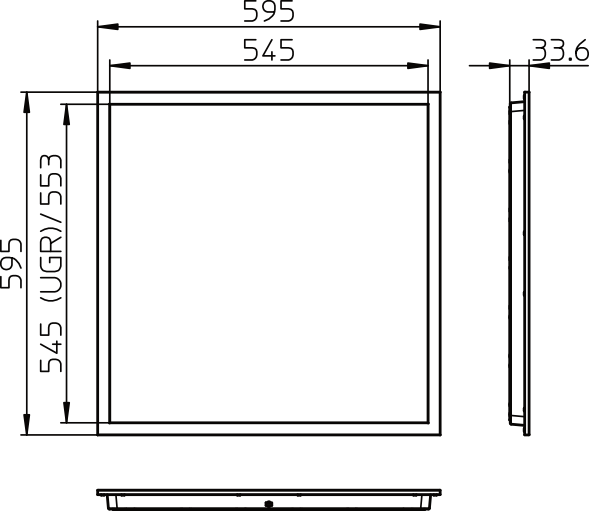

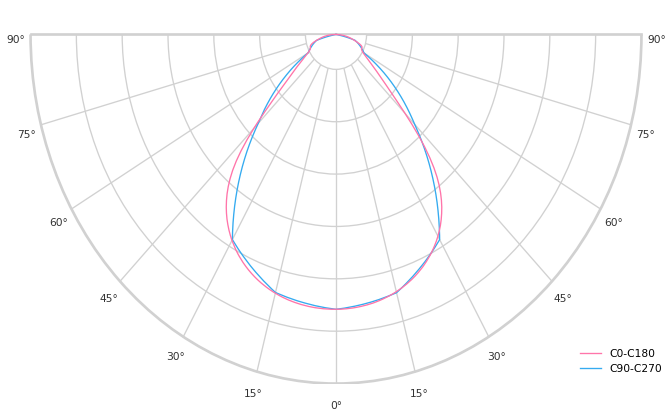

Dimmensions and light distribution
