Square12030-S-840-2
Technical specifications
Light Source
LED
CCT
4000k
CRI
80
Switching type
DALI
Connected load
22.00 W
Lumen output
3,520.00 lm
Efficiency
160.0 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
DALI
Socket
40/20
Protection class
II
Ambient temperature
0 to +30 °C
Light Source
LED
CCT
4000k
CRI
80
Connected load
22.00 W
Lumen output
3,520.00 lm
Efficiency
160.0 lm/W
Optical system
Diffuser
Optical part material
PMMA
Housing material
Steel
Surface finish
Powder coated
Width
295.00 mm
Height
29.00 mm
Length
1,195.00 mm
Weight
1.67 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years

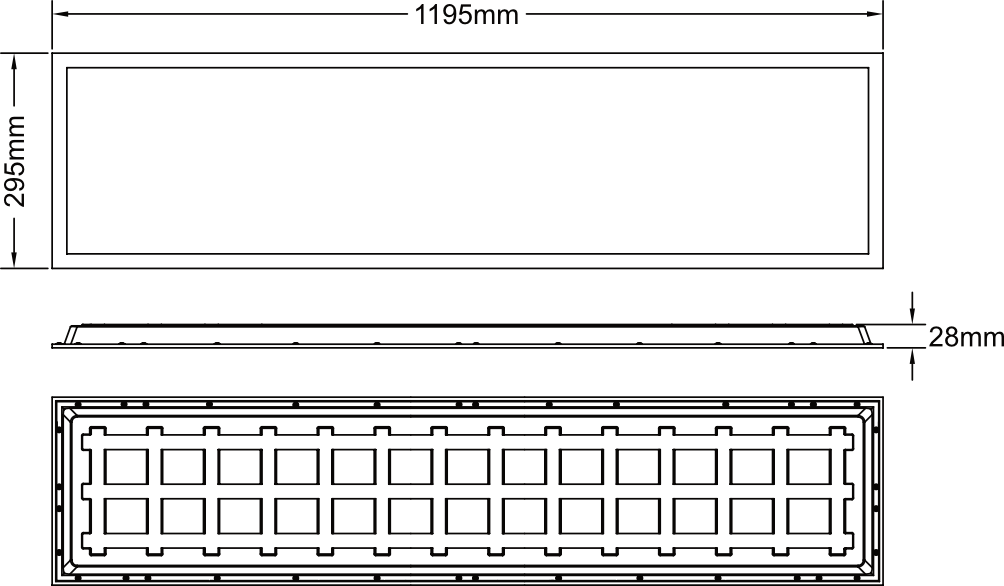

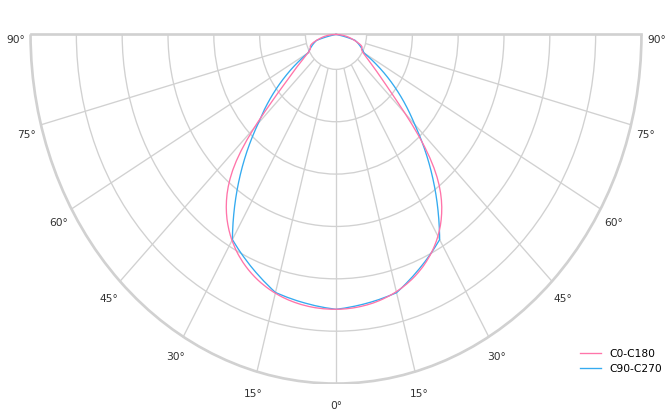

Dimmensions and light distribution
