Cross-S-840-4-90
Technical specifications
Light Source
LED
CCT
4000k
CRI
80
Switching type
1-10V
Connected load
99.58 W
Lumen output
15,365.00 lm
Efficiency
154.3 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Connection cable
Switching type
1-10V
Socket
65
Protection class
I
Impact rating
IK 08
Ambient temperature
-25 to 30 °C
Light Source
LED
CCT
4000k
CRI
80
Connected load
99.58 W
Lumen output
15,365.00 lm
Efficiency
154.3 lm/W
Inrush current
80 A
Optical system
Lenses
Optical part material
PC
Housing material
Aluminium
Surface finish
Powder coated
Height
139.00 mm
Diameter
258.00 mm
Weight
2.00 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years

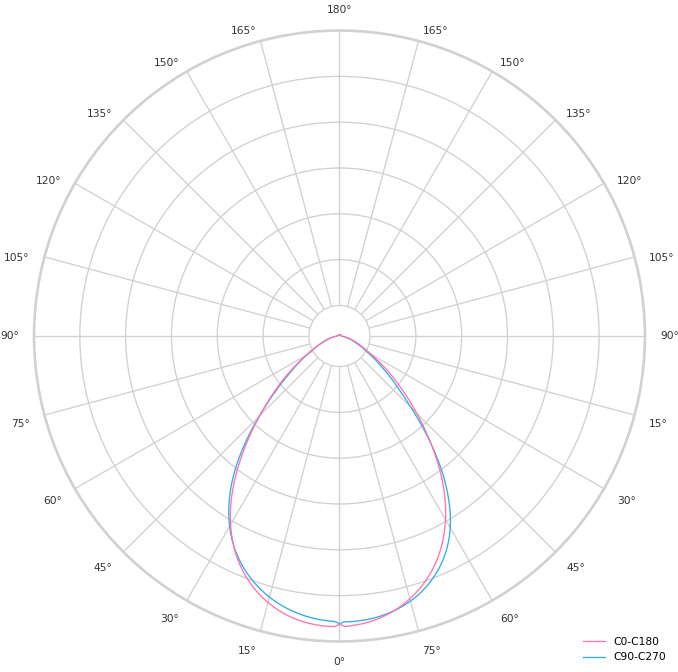

Dimmensions and light distribution
