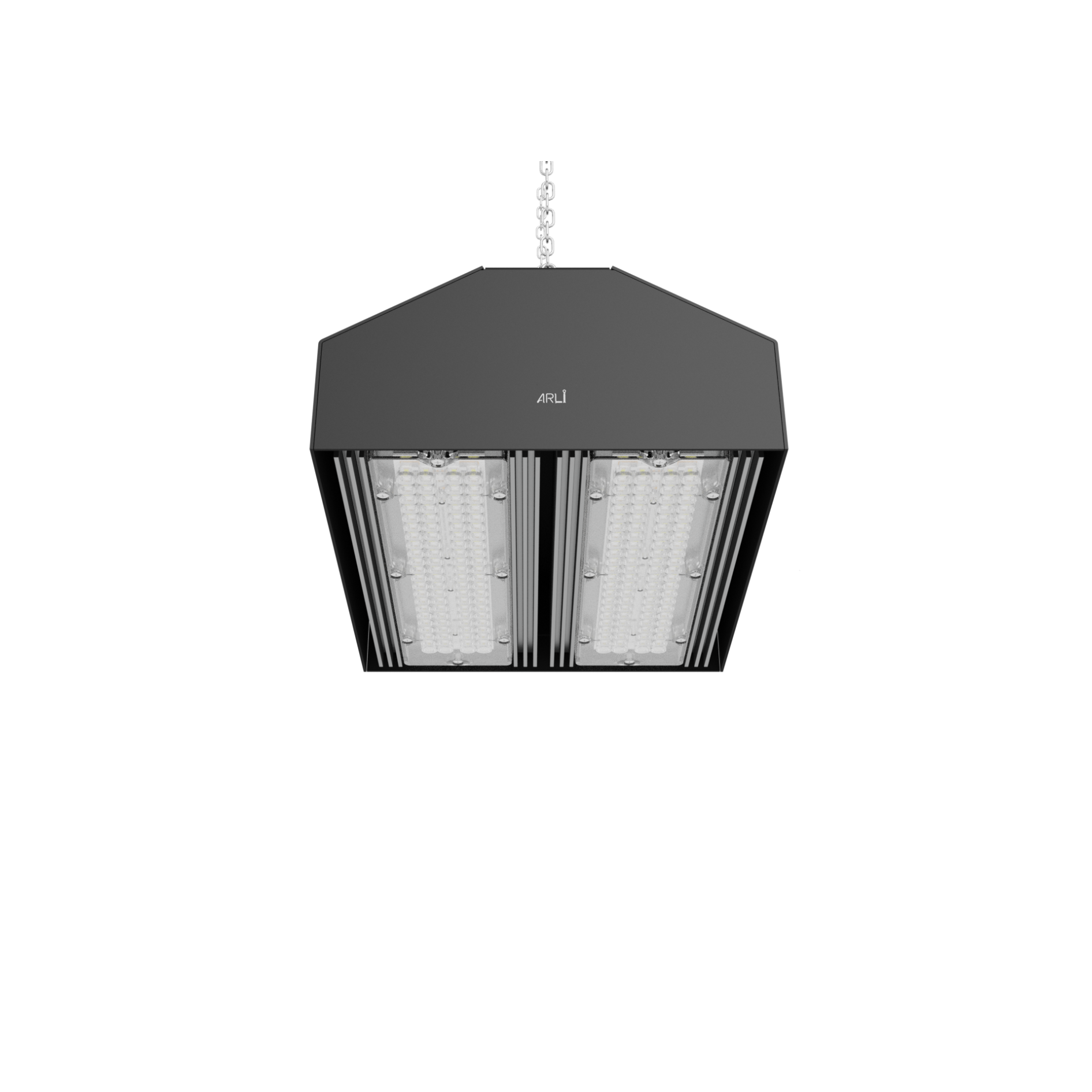

HEA3-M-850-1-WHR
Technical specifications
Light Source
LED
CCT
5000k
CRI
80
Switching type
Non-dimmable
Connected load
129.61 W
Lumen output
21,483.00 lm
Efficiency
165.8 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Connection cable
Switching type
Non-dimmable
Socket
65
Protection class
I
Impact rating
IK 08
Ambient temperature
-25 to +60 °C
Light Source
LED
CCT
5000k
CRI
80
Connected load
129.61 W
Lumen output
21,483.00 lm
Efficiency
165.8 lm/W
Ripple
3 %
Inrush current
108 A
Inrush time
322 μs
Optical system
Lenses
Optical part material
PC
Housing material
Aluminium
Surface finish
Powder coated
Width
192.00 mm
Height
135.00 mm
Length
320.00 mm
Weight
5.00 kg
Service lifetime (L80 B10)
75 000 h
Warranty
5 years

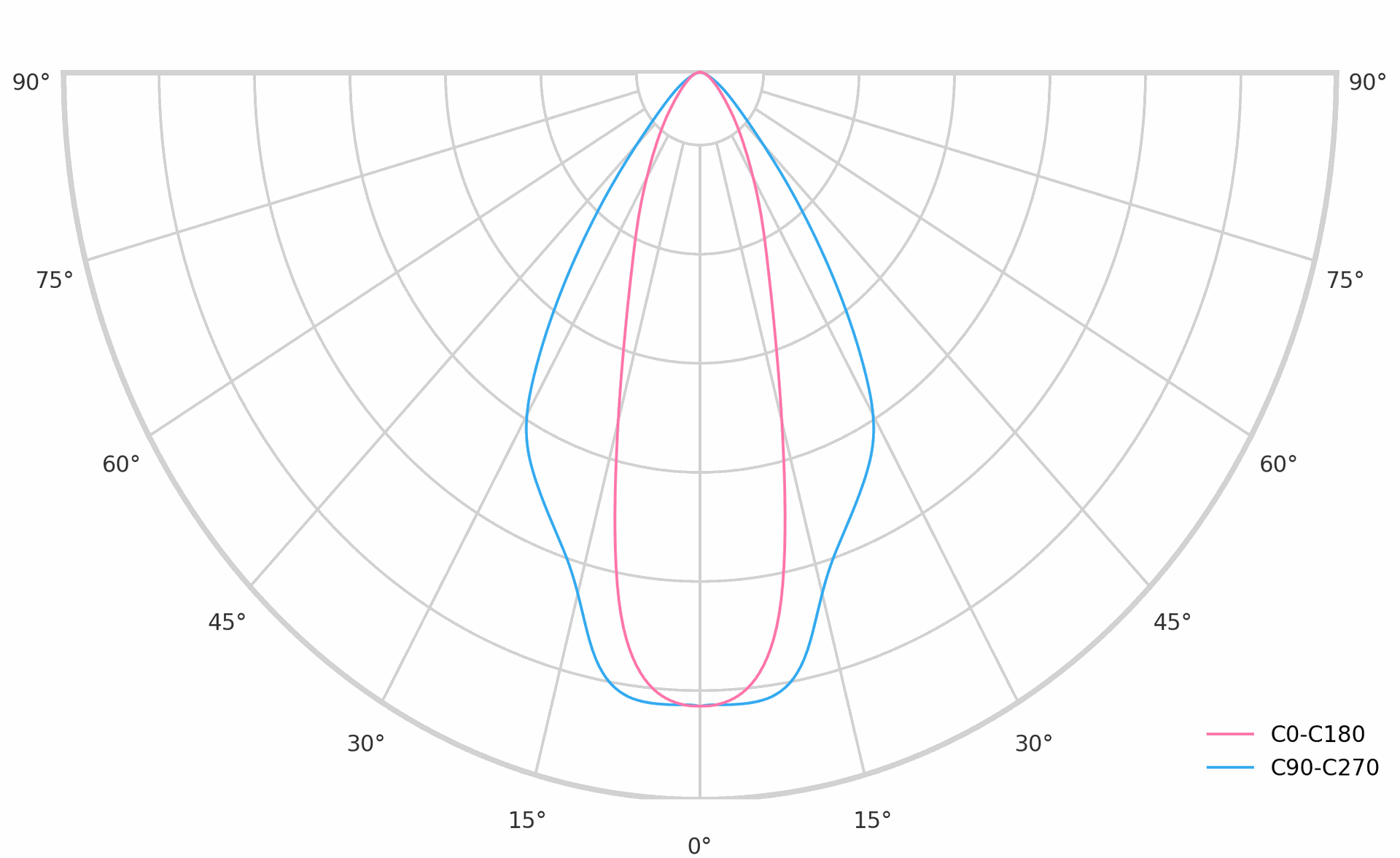

Dimmensions and light distribution
