LINESUR-2258-S-930-1-WH
Technical specifications
Light Source
LED
CCT
3000k
CRI
90
Switching type
Non-dimmable
Connected load
29.06 W
Lumen output
2,484.36 lm
Efficiency
85.5 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
3-phase track adapter
Switching type
Non-dimmable
Socket
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
3000k
CRI
90
Connected load
29.06 W
Lumen output
2,484.36 lm
Efficiency
85.5 lm/W
Ripple
1 %
Inrush current
17 A
Inrush time
162 μs
Optical system
Diffuser
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Powder coated
Width
50.00 mm
Height
70.00 mm
Length
2,258.00 mm
Weight
5.50 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Housing color

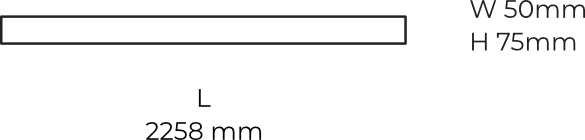

Dimmensions and light distribution
