GEMINYM-830-1-WH-
Technical specifications
Light Source
LED
CCT
3000k
CRI
80
Switching type
Non-dimmable
Connected load
23.48 W
Lumen output
3,103.92 lm
Efficiency
132.2 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
Non-dimmable
Socket
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
3000k
CRI
80
Connected load
23.48 W
Lumen output
3,103.92 lm
Efficiency
132.2 lm/W
Ripple
1 %
Inrush current
18 A
Inrush time
154 μs
Optical system
Diffuser
Optical part material
PMMA
Housing material
Steel
Surface finish
Powder coated
Width
40.00 mm
Height
40.00 mm
Length
1,200.00 mm
Weight
4.00 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Housing color
Cable colors

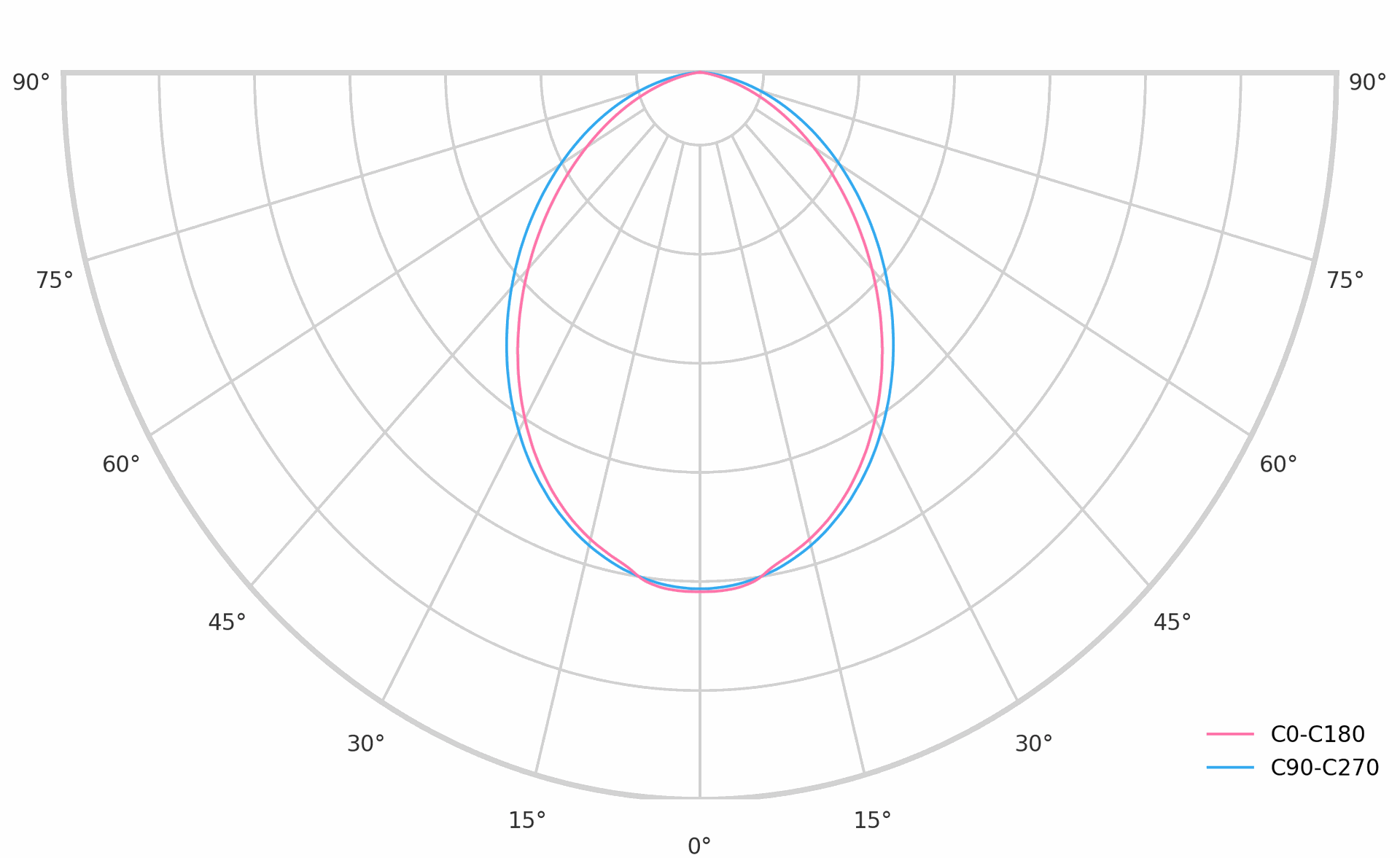

Dimmensions and light distribution
