LINESUS2258-L-930-2-BL-DI/IND-
Technical specifications
Light Source
LED
CCT
3000k
CRI
90
Switching type
DALI
Connected load
105.03 W
Lumen output
8,771.14 lm
Efficiency
83.5 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
DALI
Socket
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
3000k
CRI
90
Connected load
105.03 W
Lumen output
8,771.14 lm
Efficiency
83.5 lm/W
Ripple
1 %
DALI address
2
Standby power
1.00 W
Inrush current
71 A
Inrush time
180 μs
Optical system
Diffuser
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Powder coated
Width
50.00 mm
Height
70.00 mm
Length
2,258.00 mm
Weight
5.50 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Housing color
Cable colors

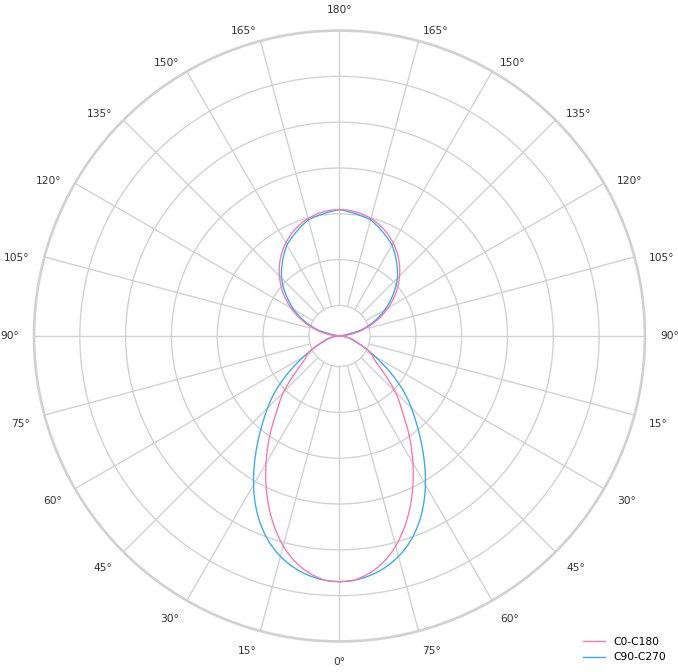

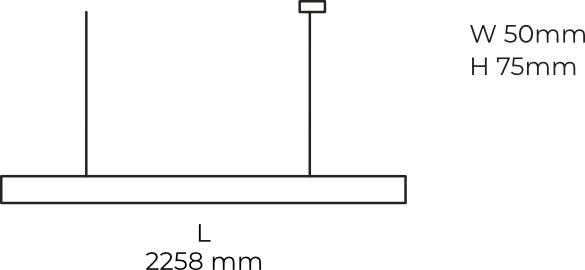

Dimmensions and light distribution
