LINESUS2820-L-930-1-BL-DI/IND-
Technical specifications
Light Source
LED
CCT
3000k
CRI
90
Switching type
Non-dimmable
Connected load
128.52 W
Lumen output
11,022.27 lm
Efficiency
85.8 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
Non-dimmable
Socket
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
3000k
CRI
90
Connected load
128.52 W
Lumen output
11,022.27 lm
Efficiency
85.8 lm/W
Ripple
2 %
Inrush current
55 A
Inrush time
188 μs
Optical system
Diffuser
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Powder coated
Width
50.00 mm
Height
70.00 mm
Length
2,820.00 mm
Weight
6.80 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Housing color
Cable colors

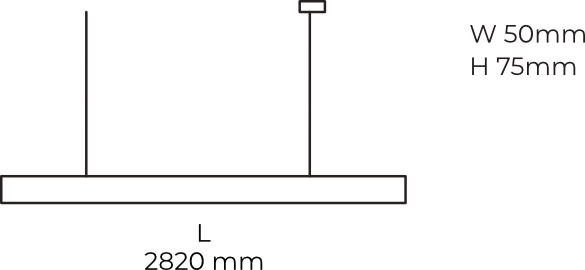

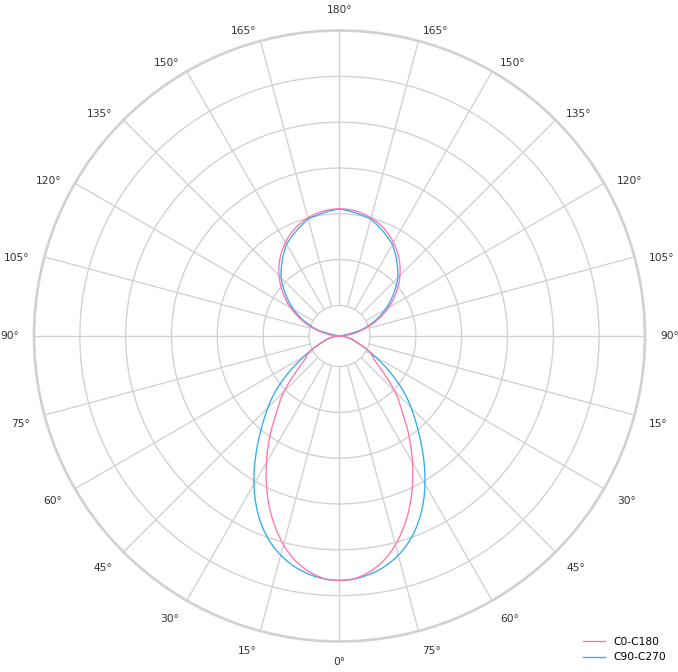

Dimmensions and light distribution
