FLIT-1000-S-940-2-90-BL
Technical specifications
Light Source
LED
CCT
4000k
CRI
90
Switching type
DALI
Connected load
19.23 W
Lumen output
2,584.00 lm
Efficiency
134.4 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
3-phase track adapter
Switching type
DALI
Socket
20
Ambient temperature
0 to +30 °C
Light Source
LED
CCT
4000k
CRI
90
Connected load
19.23 W
Lumen output
2,584.00 lm
Efficiency
134.4 lm/W
Ripple
1 %
DALI address
1
Inrush current
6 A
Inrush time
800 μs
Optical system
Lenses
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Powder coated
Width
62.00 mm
Height
57.00 mm
Length
1,000.00 mm
Weight
1.40 kg
Service lifetime (L80 B10)
60 000 h
Warranty
5 years
Housing color

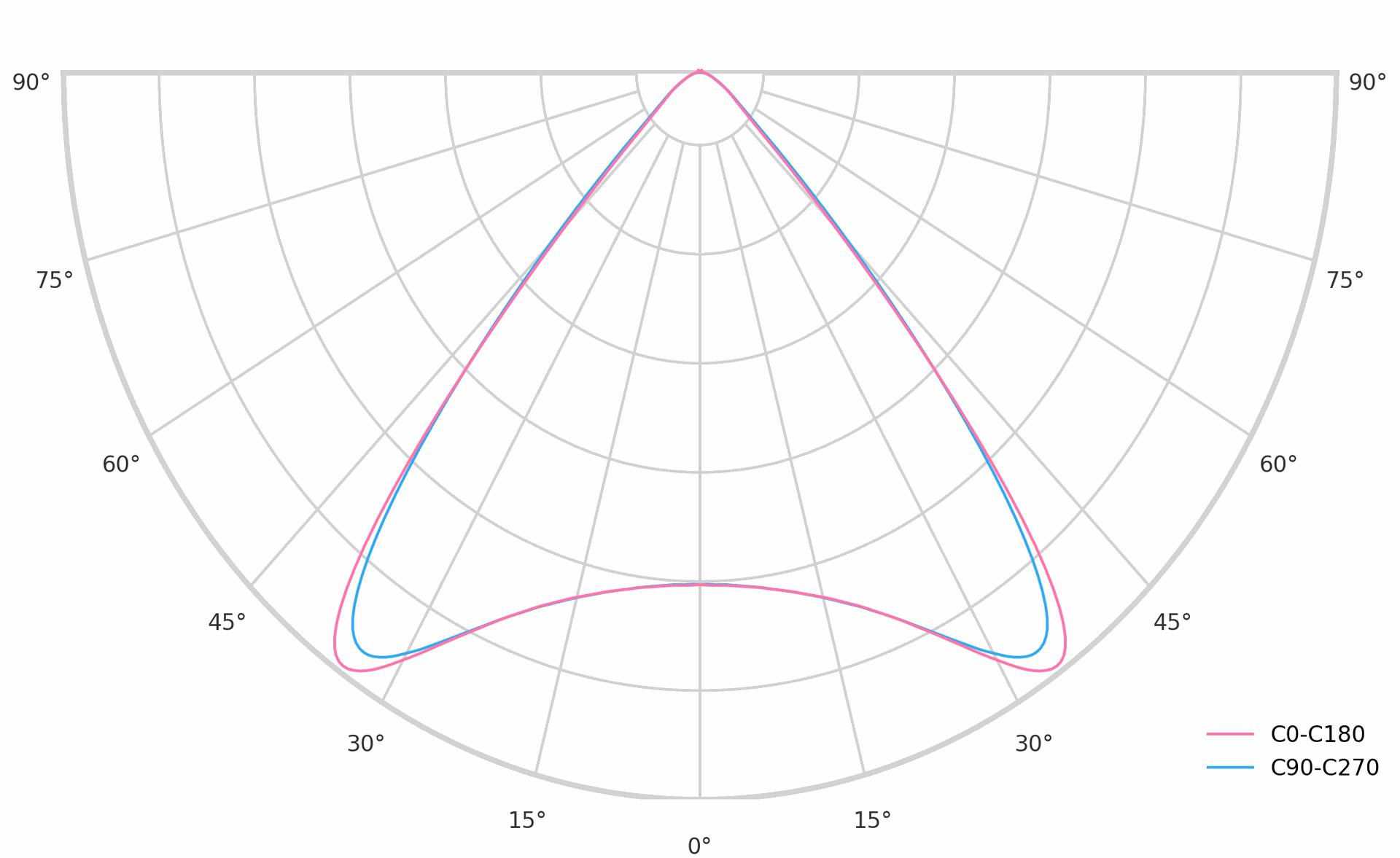

Dimmensions and light distribution
