PRIME-4-S-830-2-C-BL
Technical specifications
Light Source
LED
CCT
3000k
CRI
80
Switching type
DALI
Connected load
12.60 W
Lumen output
1,575.00 lm
Efficiency
125.0 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
DALI
Socket
44/20
Protection class
II
Ambient temperature
0 to +30 °C
Light Source
LED
CCT
3000k
CRI
80
Connected load
12.60 W
Lumen output
1,575.00 lm
Efficiency
125.0 lm/W
Optical system
Reflector
Optical part material
Hardened glass
Housing material
Die-cast aluminium
Surface finish
Powder coated
Height
75.00 mm
Diameter
145.00 mm
Weight
0.60 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Housing color

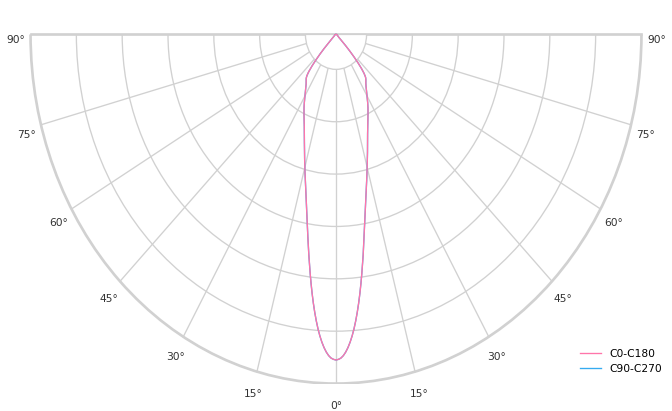

Dimmensions and light distribution
