HEXSUR-1800-S-840-1-BL
Technical specifications
Light Source
LED
CCT
4000k
CRI
80
Switching type
Non-dimmable
Connected load
46.82 W
Lumen output
5,106.81 lm
Efficiency
109.1 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
Non-dimmable
Socket
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
4000k
CRI
80
Connected load
46.82 W
Lumen output
5,106.81 lm
Efficiency
109.1 lm/W
Ripple
1 %
Inrush current
37 A
Inrush time
188 μs
Optical system
Diffuser
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Powder coated
Width
1,800.00 mm
Height
70.00 mm
Length
1,800.00 mm
Weight
10.00 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Housing color

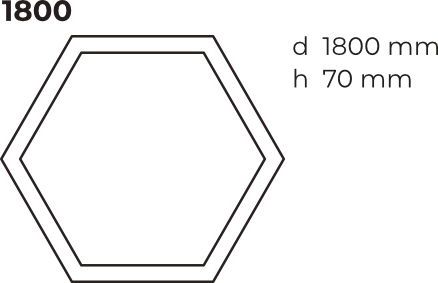

Dimmensions and light distribution
