HEXSUR-600-L-840-2-BL
Technical specifications
Light Source
LED
CCT
4000k
CRI
80
Switching type
DALI
Connected load
56.33 W
Lumen output
5,455.94 lm
Efficiency
96.9 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
DALI
Socket
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
4000k
CRI
80
Connected load
56.33 W
Lumen output
5,455.94 lm
Efficiency
96.9 lm/W
Ripple
1 %
DALI address
1
Standby power
0.50 W
Inrush current
53 A
Optical system
Diffuser
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Powder coated
Width
600.00 mm
Height
70.00 mm
Length
600.00 mm
Weight
5.40 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Housing color

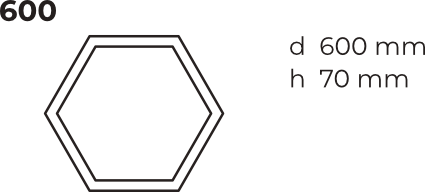

Dimmensions and light distribution
