HEXSUR-1200-L-930-1-BL
Technical specifications
Light Source
LED
CCT
3000k
CRI
90
Switching type
Non-dimmable
Connected load
79.25 W
Lumen output
6,320.65 lm
Efficiency
79.8 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
Non-dimmable
Socket
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
3000k
CRI
90
Connected load
79.25 W
Lumen output
6,320.65 lm
Efficiency
79.8 lm/W
Ripple
2 %
Inrush current
18 A
Inrush time
44 μs
Optical system
Diffuser
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Powder coated
Width
1,200.00 mm
Height
70.00 mm
Length
1,200.00 mm
Weight
6.40 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Housing color

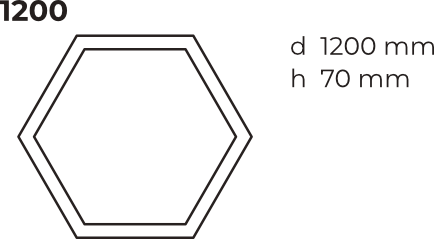

Dimmensions and light distribution
