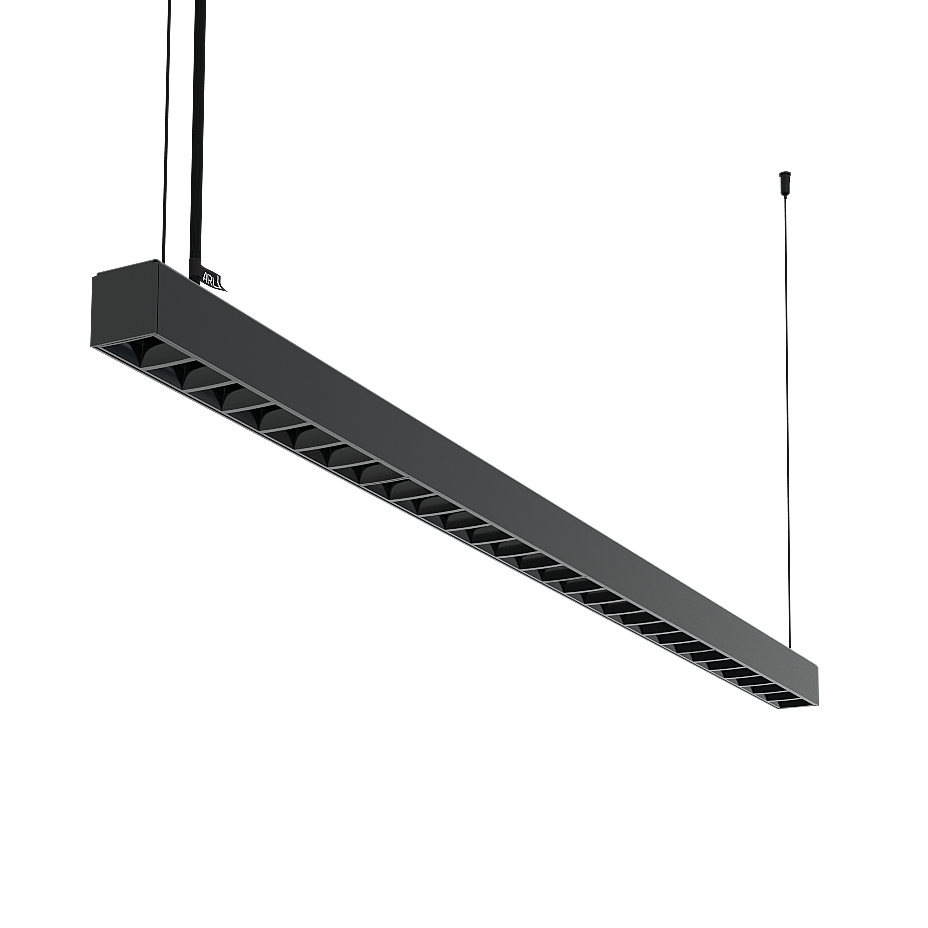

WORSUS-S-830-1-80-BL-
Technical specifications
Light Source
LED
CCT
3000k
CRI
80
Switching type
Non-dimmable
Connected load
21.63 W
Lumen output
3,062.53 lm
Efficiency
141.6 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
Non-dimmable
Socket
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
3000k
CRI
80
Connected load
21.63 W
Lumen output
3,062.53 lm
Efficiency
141.6 lm/W
Ripple
1 %
Inrush current
18 A
Inrush time
154 μs
Optical system
Lenses
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Powder coated
Width
44.00 mm
Height
47.00 mm
Length
1,122.00 mm
Weight
2.80 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Housing color
Cable colors
Dimmensions and light distribution
