INDSUR3-XL-840-2-HR
Technical specifications
Light Source
LED
CCT
4000k
CRI
80
Switching type
DALI
Connected load
196.22 W
Lumen output
32,224.50 lm
Efficiency
164.2 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Connection cable
Switching type
DALI
Socket
65
Protection class
I
Impact rating
IK 08
Ambient temperature
-25 to 30 °C
Light Source
LED
CCT
4000k
CRI
80
Connected load
196.22 W
Lumen output
32,224.50 lm
Efficiency
164.2 lm/W
Ripple
3 %
DALI address
1
Standby power
0.50 W
Inrush current
89 A
Inrush time
584 μs
Optical system
Lenses
Optical part material
PC
Housing material
Aluminium
Surface finish
Powder coated
Width
296.00 mm
Height
100.00 mm
Length
320.00 mm
Weight
6.80 kg
Service lifetime (L80 B10)
>100 000 h
Warranty
7 years

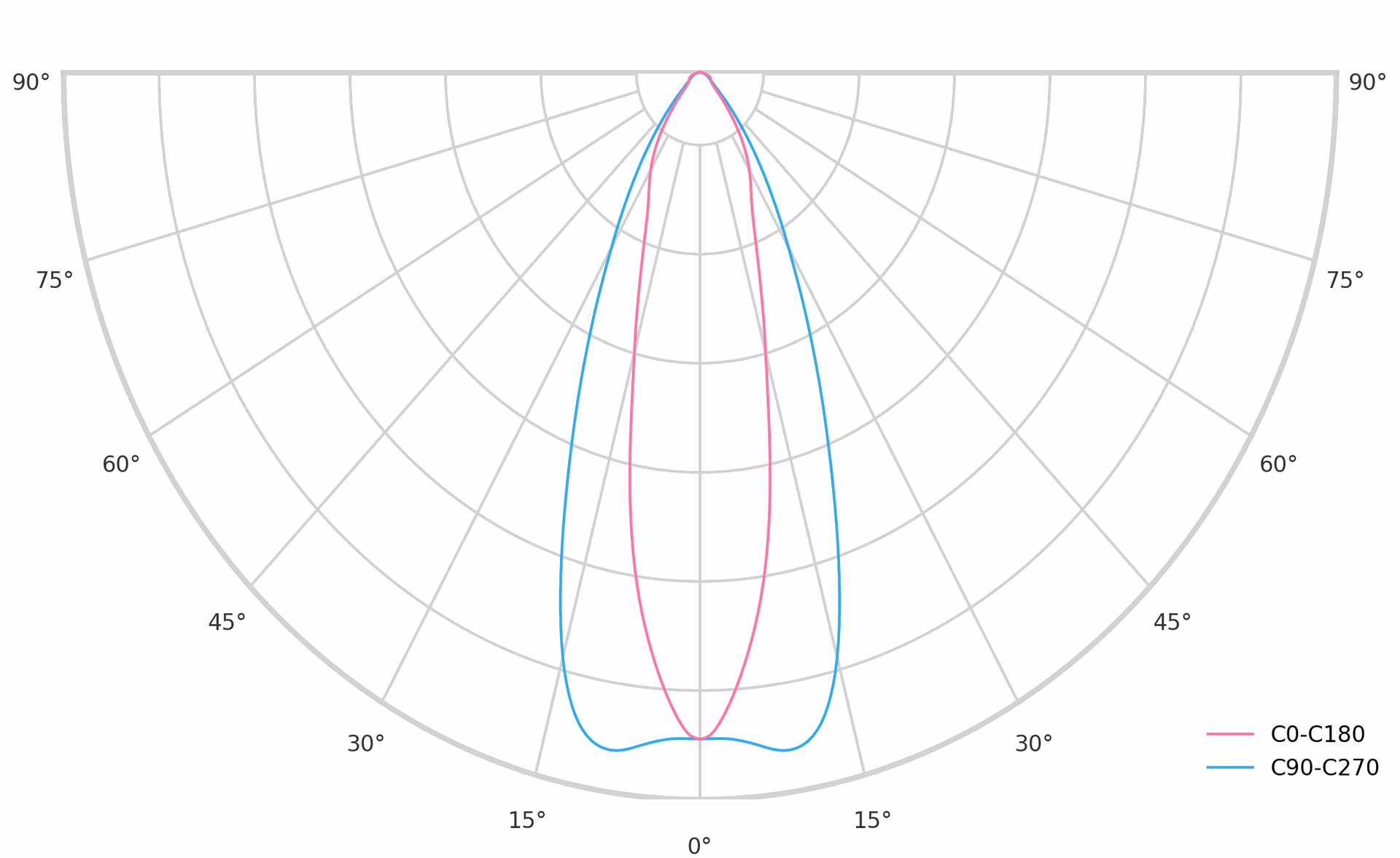

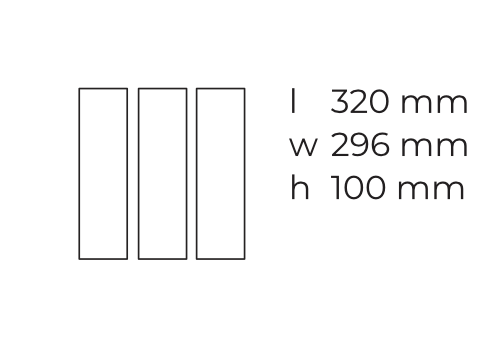

Dimmensions and light distribution
