HEA3-S-840-2-75
Technical specifications
Light Source
LED
CCT
4000k
CRI
80
Switching type
DALI
Connected load
99,14 W
Lumen output
16 926,00 lm
Efficiency
170,7 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Connection cable
Switching type
DALI
Socket
65
Protection class
I
Impact rating
IK 08
Ambient temperature
-25 to +60 °C
Light Source
LED
CCT
4000k
CRI
80
Connected load
99,14 W
Lumen output
16 926,00 lm
Efficiency
170,7 lm/W
Ripple
3 %
DALI address
1
Standby power
0,50 W
Inrush current
108 A
Inrush time
322 μs
Optical system
Lenses
Optical part material
PC
Housing material
Aluminium
Surface finish
Powder coated
Width
192,00 mm
Height
135,00 mm
Length
320,00 mm
Weight
5,00 kg
Service lifetime (L80 B10)
75 000 h
Warranty
5 years

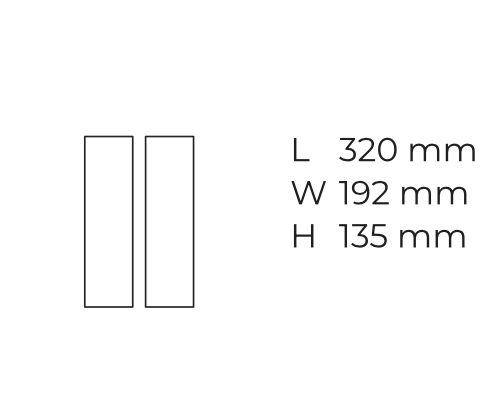

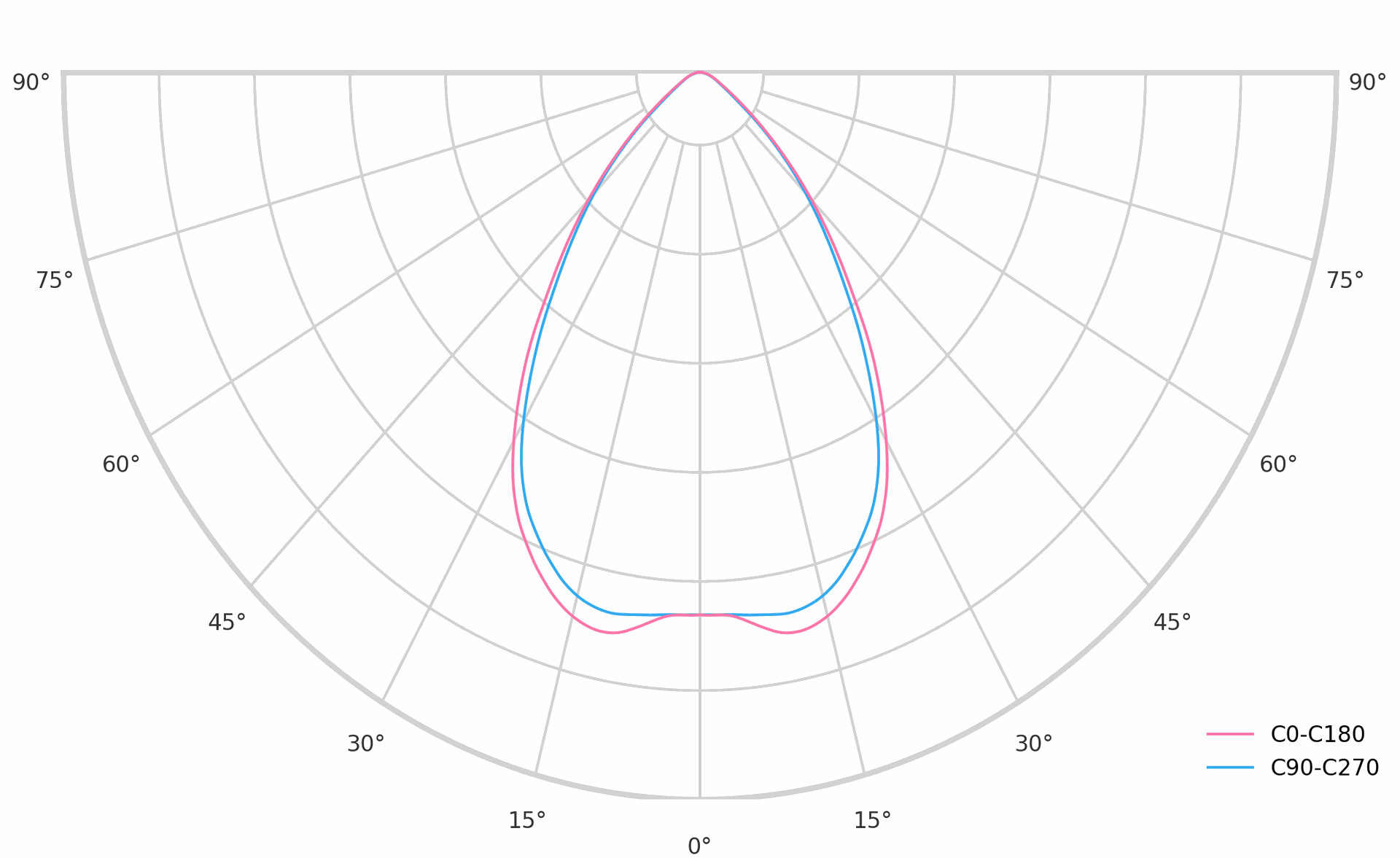

Dimmensions and light distribution
