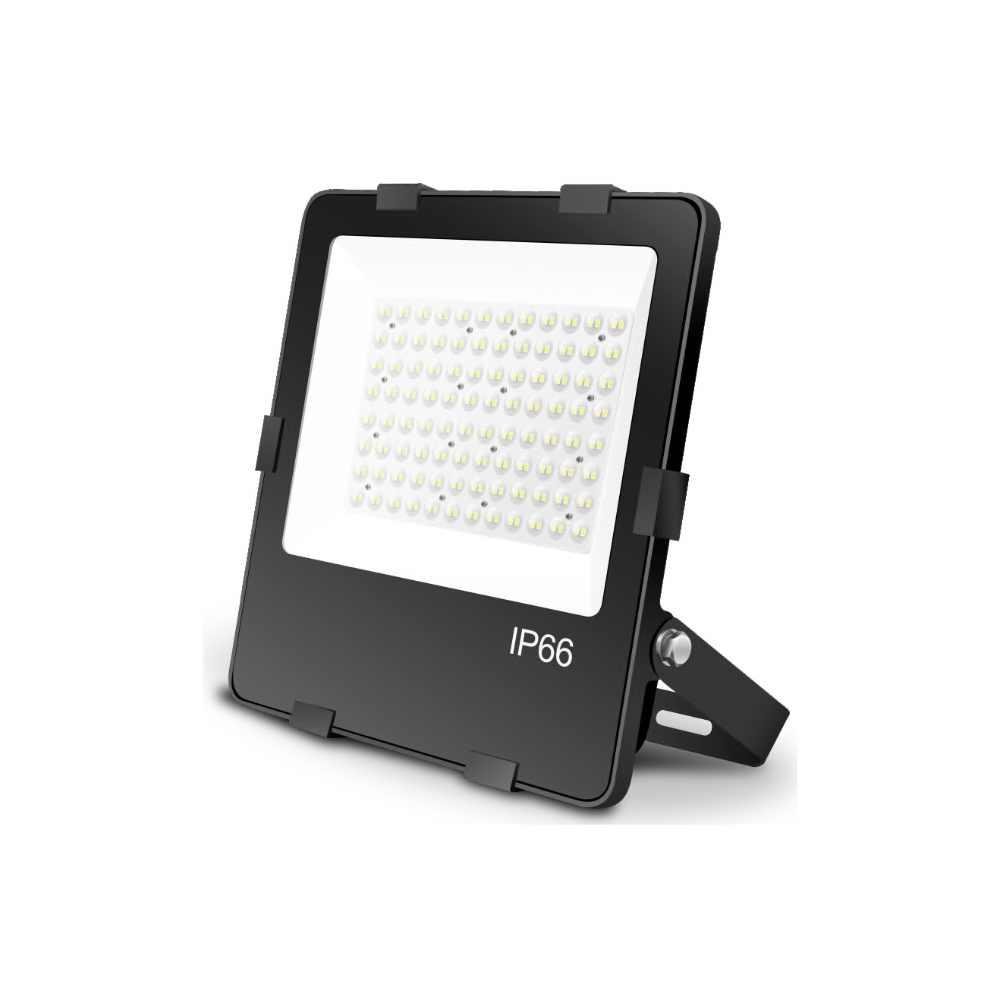

Recon-M-740
Technical specifications
Light Source
LED
CCT
4000k
CRI
70
Connected load
48,95 W
Lumen output
7 170,00 lm
Efficiency
146,5 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Connection cable
Socket
66
Protection class
I
Ambient temperature
-30 to +35 °C
Light Source
LED
CCT
4000k
CRI
70
Connected load
48,95 W
Lumen output
7 170,00 lm
Efficiency
146,5 lm/W
Inrush current
90 A
Optical system
Lenses
Optical part material
Hardened glass
Housing material
Die-cast aluminium
Surface finish
Powder coated
Width
243,00 mm
Height
53,00 mm
Length
280,00 mm
Weight
1,55 kg
Service lifetime (L80 B10)
35 000 h
Warranty
3 years

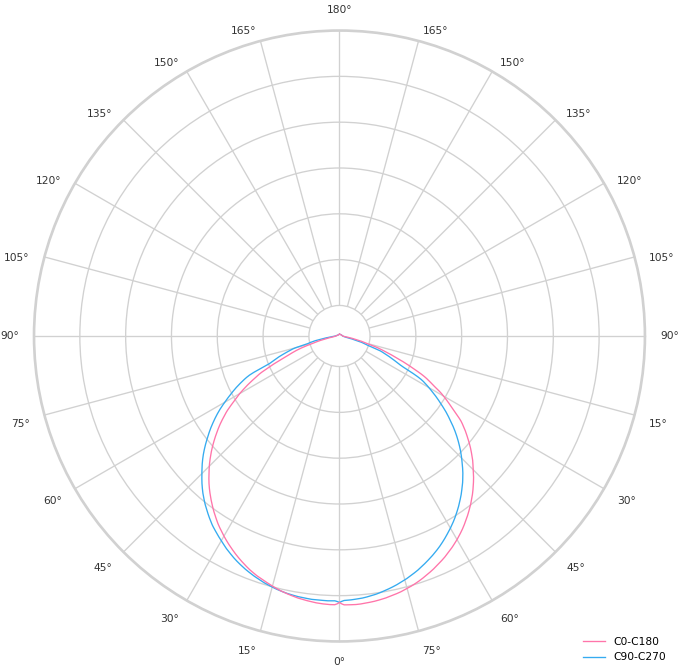

Dimmensions and light distribution
