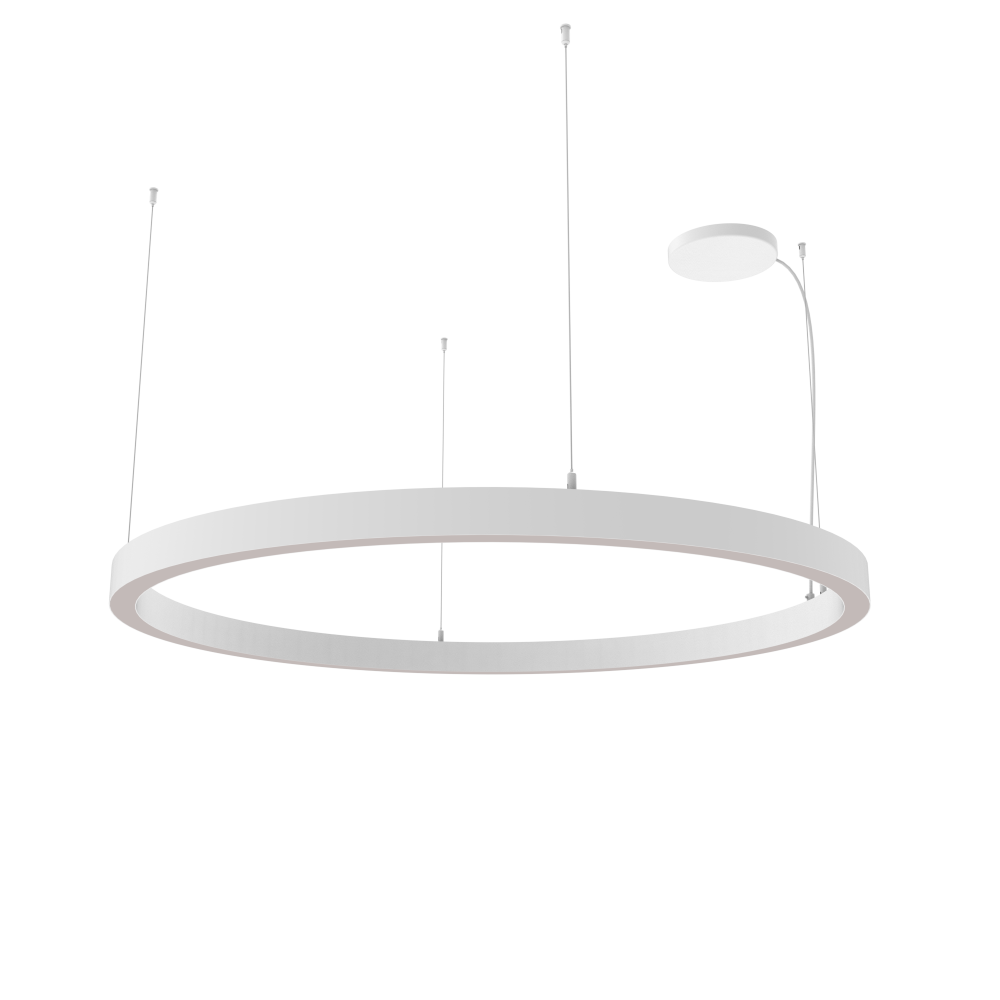

Ring-L-830-2-SUS-WH-
Technical specifications
Light Source
LED
CCT
3000k
CRI
80
Switching type
DALI
Connected load
75,00 W
Lumen output
6 600,00 lm
Efficiency
88,0 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Screw terminal
Switching type
DALI
Socket
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
3000k
CRI
80
Connected load
75,00 W
Lumen output
6 600,00 lm
Efficiency
88,0 lm/W
Optical system
Diffuser
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Painted
Height
60,00 mm
Diameter
1 200,00 mm
Weight
12,20 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Housing color
Cable colors

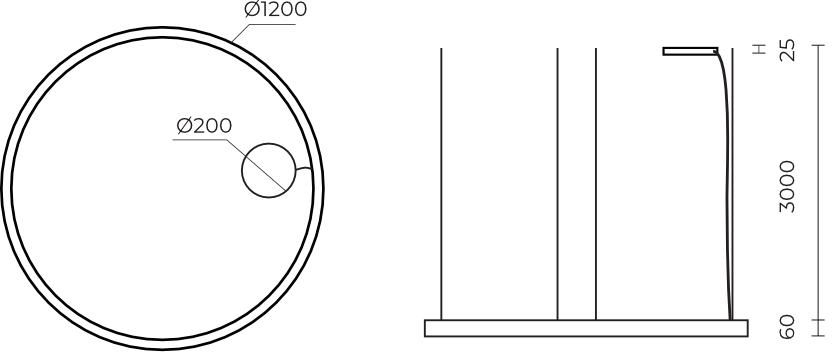

Dimmensions and light distribution
