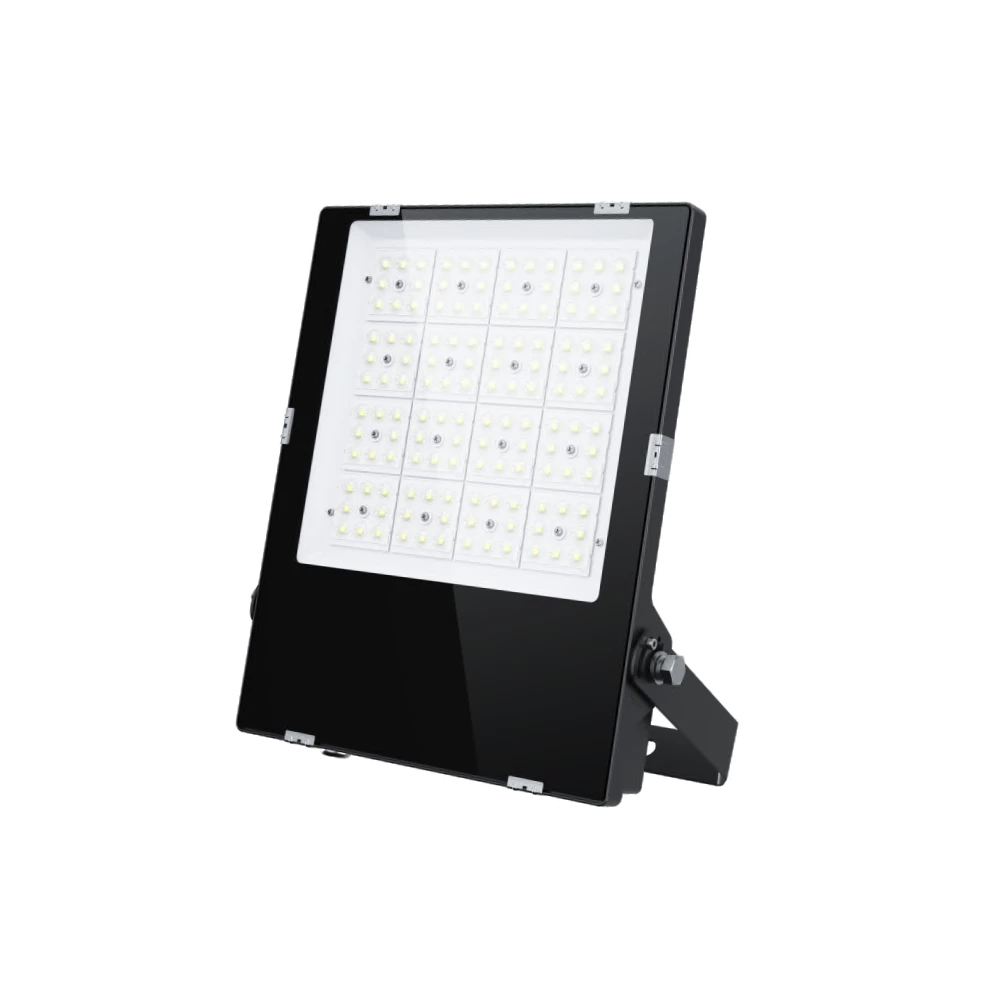

AREA-S-840-1-ASYM1
Technical specifications
Light Source
LED
CCT
4000k
CRI
80
Switching type
Non-dimmable
Connected load
100,00 W
Lumen output
14 088,00 lm
Efficiency
140,9 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Connection cable
Switching type
Non-dimmable
Socket
66
Protection class
I
Impact rating
IK 08
Ambient temperature
-30 to +35 °C
Light Source
LED
CCT
4000k
CRI
80
Connected load
100,00 W
Lumen output
14 088,00 lm
Efficiency
140,9 lm/W
Inrush current
90 A
Optical system
Lenses
Optical part material
Hardened glass
Housing material
Die-cast aluminium
Surface finish
Powder coated
Width
246,00 mm
Height
53,00 mm
Length
292,00 mm
Weight
2,50 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years

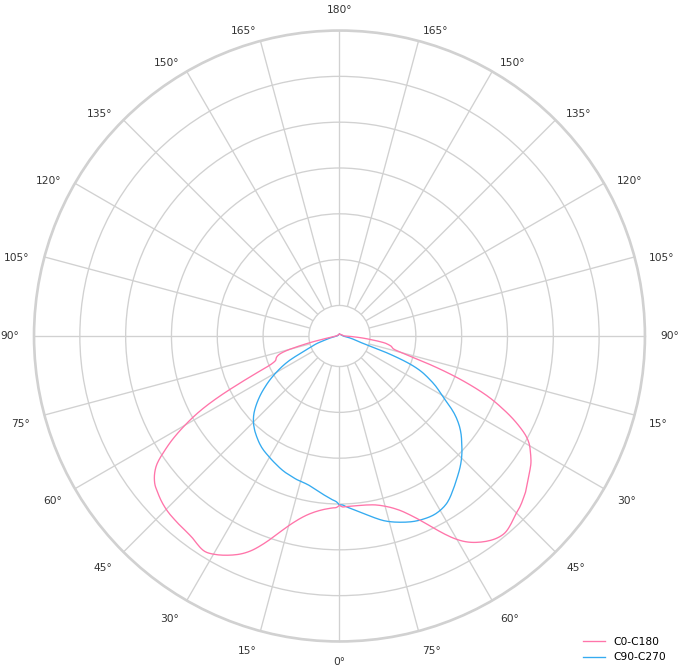

Dimmensions and light distribution
