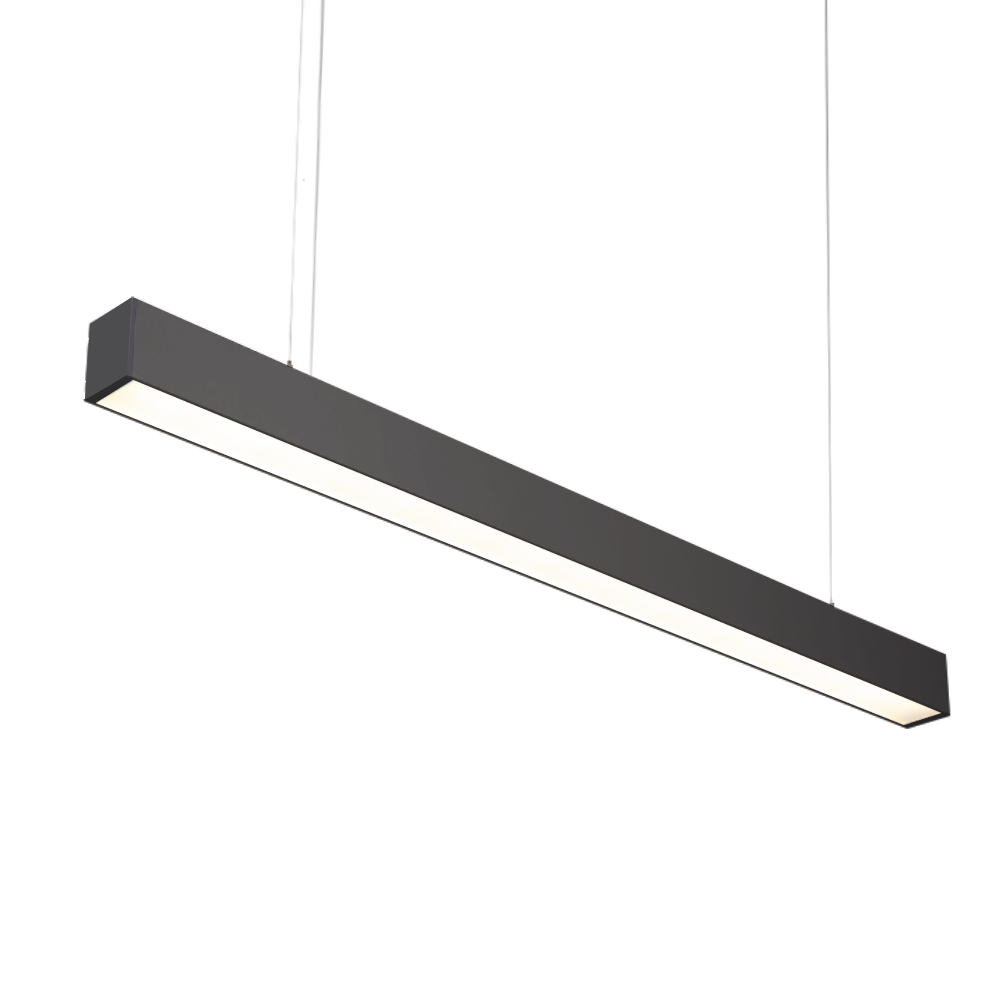

BASICSUS-1200-840-2-PD-BL
Technical specifications
Light Source
LED
CCT
4000k
CRI
80
Switching type
DALI
Connected load
26.60 W
Lumen output
3,181.60 lm
Efficiency
119.6 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
DALI
Socket
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
4000k
CRI
80
Connected load
26.60 W
Lumen output
3,181.60 lm
Efficiency
119.6 lm/W
Optical system
Lenses
Optical part material
PC
Housing material
Aluminium
Surface finish
Powder coated
Width
50.00 mm
Height
70.00 mm
Length
1,200.00 mm
Weight
1.70 kg
Service lifetime (L80 B30)
50 000 h
Warranty
3 years
Housing color

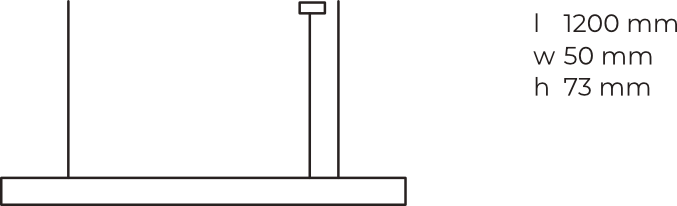

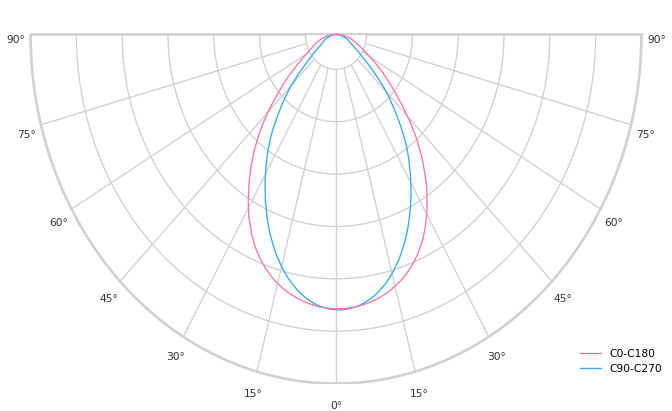

Dimmensions and light distribution
